購買 IHLE4040DDER2R2M5A與BYCHPS
購買即有保證

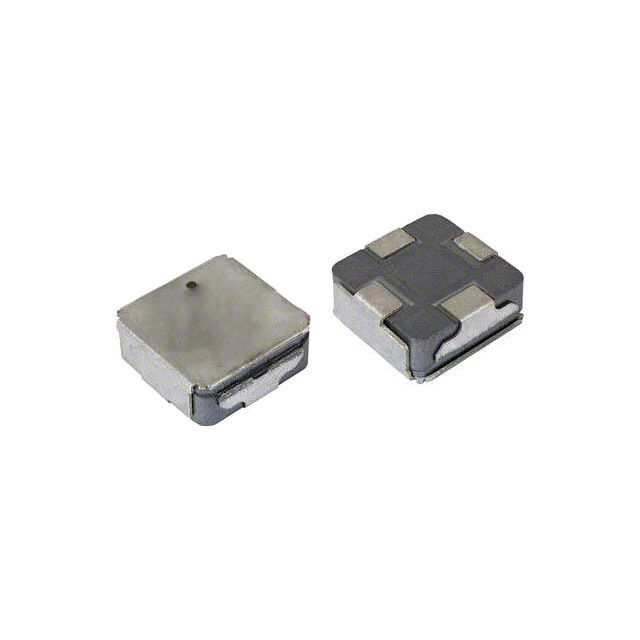

IHLE4040DDER2R2M5A
- 型號:
- IHLE4040DDER2R2M5A
- 製造商:
- Dale / Vishay
- 描述:
- FIXED IND 2.2UH 15A 8.76 MOHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14941 Pieces
簡單介紹
BYCHIPS是 IHLE4040DDER2R2M5A的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IHLE4040DDER2R2M5A購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | 4040 |
| 尺寸/尺寸: | 0.426" L x 0.426" W (10.82mm x 10.82mm) |
| 屏蔽: | Shielded |
| 系列: | IHLE-4040DD-5A |
| 評級: | AEC-Q200 |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 4-SMD, J-Lead |
| 其他名稱: | 541-2331-2 IHLE4040DCER2R2M5A |
| 工作溫度: | -55°C ~ 155°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | - |
| 製造商零件編號: | IHLE4040DDER2R2M5A |
| 電感: | 2.2µH |
| 高度 - 座高（最大）: | 0.169" (4.30mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | - |
| 展開說明: | 2.2µH Shielded Wirewound Inductor 15A 8.76 mOhm Max 4-SMD, J-Lead |
| 描述: | FIXED IND 2.2UH 15A 8.76 MOHM |
| 直流電阻（DCR）: | 8.76 mOhm Max |
| 目前評級: | 15A |
| 電流 - 飽和: | 12A |
| Email: | [email protected] |
