購買 HVD5-B20M-050-05與BYCHPS
購買即有保證

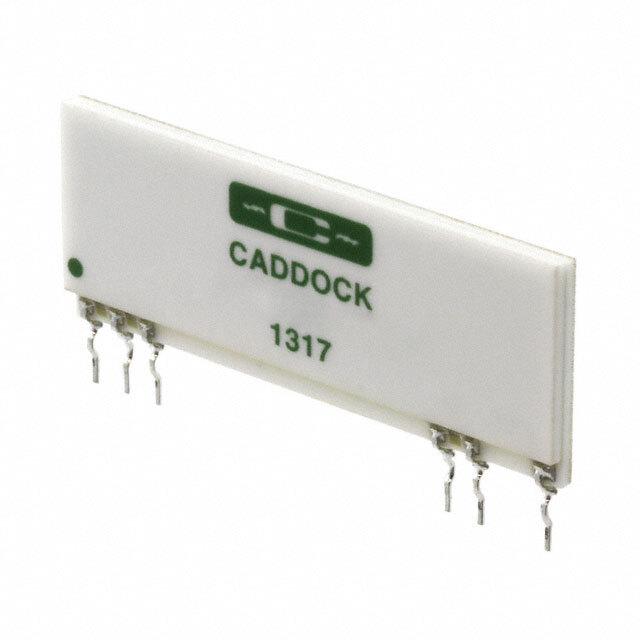

HVD5-B20M-050-05
- 型號:
- HVD5-B20M-050-05
- 描述:
- RES NETWORK 2 RES MULT OHM 15SIP
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18090 Pieces
簡單介紹
BYCHIPS是 HVD5-B20M-050-05的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的HVD5-B20M-050-05購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 公差: | ±0.05% |
|---|---|
| 溫度係數: | ±30ppm/°C |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 1.500" L x 0.110" W (38.10mm x 2.79mm) |
| 系列: | HVD |
| 電阻（歐姆）: | 200k, 19.8M |
| 每個元件的功率: | 31mW |
| 封装: | Bulk |
| 封裝/箱體: | 15-SIP, 6 Leads |
| 其他名稱: | HVD5B20M05005 MDN1213-15 REFHVD5-B20M-050-05 |
| 工作溫度: | -40°C ~ 85°C |
| 電阻數: | 2 |
| 引腳數目: | 6 |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | HVD5-B20M-050-05 |
| 高度 - 座高（最大）: | 0.610" (15.50mm) |
| 展開說明: | 200k, 19.8M Ohm ±0.05% 31mW Power Per Element Voltage Divider Resistor Network/Array ±30ppm/°C 15-SIP, 6 Leads |
| 描述: | RES NETWORK 2 RES MULT OHM 15SIP |
| 電路類型: | Voltage Divider |
| 應用: | Voltage Divider (TCR Matched) |
| Email: | [email protected] |
