購買 HL1-HTM-AC240V-F與BYCHPS
購買即有保證

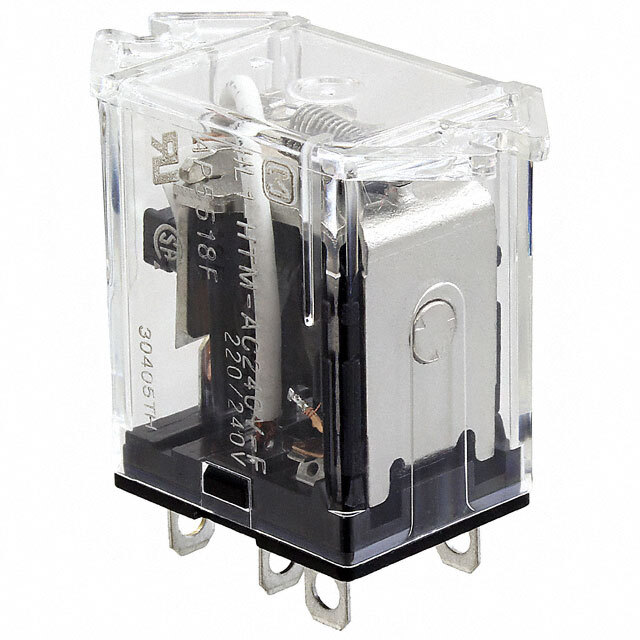

HL1-HTM-AC240V-F
- 型號:
- HL1-HTM-AC240V-F
- 製造商:
- Panasonic
- 描述:
- RELAY GEN PURPOSE SPDT 15A 240V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15004 Pieces
簡單介紹
BYCHIPS是 HL1-HTM-AC240V-F的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的HL1-HTM-AC240V-F購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 192 VAC |
|---|---|
| 關閉電壓（最小）: | 72 VAC |
| 端接類型: | Quick Connect - 0.187" (4.7mm) |
| 切換電壓: | 125VAC - Nom |
| 系列: | HL |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 255-3632 HL1HTMAC240VF |
| 工作溫度: | -50°C ~ 70°C |
| 操作時間: | 10ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 13 Weeks |
| 製造商零件編號: | HL1-HTM-AC240V-F |
| 特徵: | - |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 240VAC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE SPDT 15A 240V |
| 觸點額定值（電流）: | 15A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 240VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | - |
| 線圈功率: | 1.2 VA |
| 線圈電流: | 5mA |
| Email: | [email protected] |
