購買 HFW5A1201G00與BYCHPS
購買即有保證

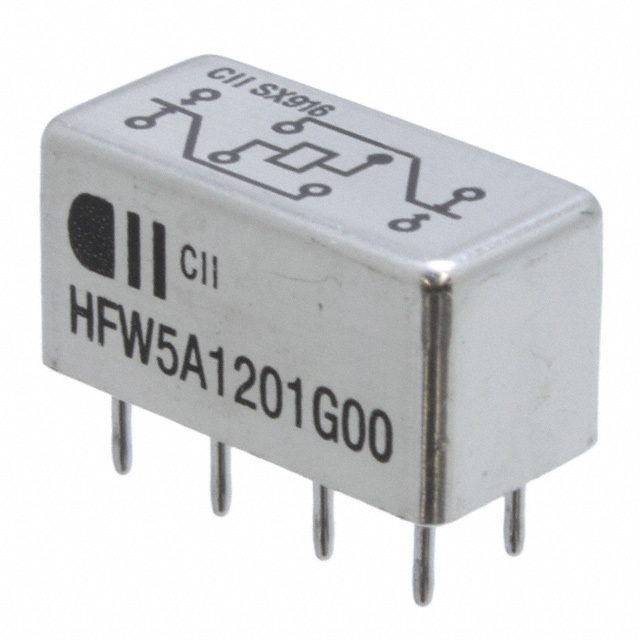

HFW5A1201G00
- 型號:
- HFW5A1201G00
- 描述:
- RELAY GEN PURPOSE DPDT 5A 12V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 13220 Pieces
- 數據表:
- HFW5A1201G00.pdf
簡單介紹
BYCHIPS是 HFW5A1201G00的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的HFW5A1201G00購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 6.4 VDC |
|---|---|
| 關閉電壓（最小）: | 0.7 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 28VDC - Max |
| 系列: | HFW5A, CII |
| 發布時間: | 4ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1617037-7 16170377 A107303 |
| 工作溫度: | -65°C ~ 125°C |
| 操作時間: | 4ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 13 Weeks |
| 製造商零件編號: | HFW5A1201G00 |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 12VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE DPDT 5A 12V |
| 觸點額定值（電流）: | 5A |
| 觸點材料: | Silver Alloy |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 160 Ohms |
| 線圈功率: | - |
| 線圈電流: | 75mA |
| Email: | [email protected] |
