購買 HD64F7144F50V與BYCHPS
購買即有保證

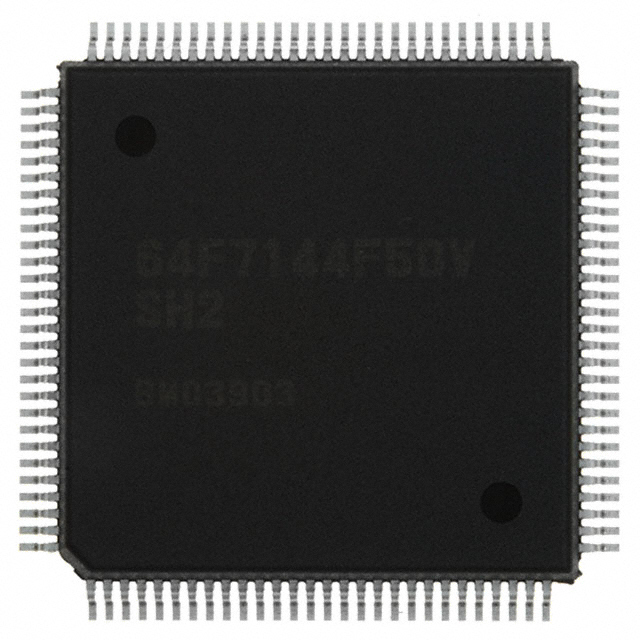

HD64F7144F50V
- 型號:
- HD64F7144F50V
- 描述:
- IC MCU 32BIT 256KB FLASH 112QFP
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15054 Pieces
簡單介紹
BYCHIPS是 HD64F7144F50V的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的HD64F7144F50V購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 電源（Vcc / VDD）: | 3 V ~ 3.6 V |
|---|---|
| 供應商設備封裝: | 112-QFP (20x20) |
| 速度: | 50MHz |
| 系列: | SuperH® SH7144 |
| RAM容量: | 8K x 8 |
| 程序存儲器類型: | FLASH |
| 程序存儲器大小: | 256KB (256K x 8) |
| 外設: | DMA, POR, PWM, WDT |
| 封装: | Tray |
| 封裝/箱體: | 112-BQFP |
| 振盪器型: | Internal |
| 工作溫度: | -20°C ~ 75°C (TA) |
| I / O數量: | 74 |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 製造商標準交貨期: | 24 Weeks |
| 製造商零件編號: | HD64F7144F50V |
| 展開說明: | SH-2 SuperH® SH7144 Microcontroller IC 32-Bit 50MHz 256KB (256K x 8) FLASH 112-QFP (20x20) |
| EEPROM容量: | - |
| 描述: | IC MCU 32BIT 256KB FLASH 112QFP |
| 數據轉換器: | A/D 8x10b |
| 核心尺寸: | 32-Bit |
| 核心處理器: | SH-2 |
| 連通性: | EBI/EMI, I²C, SCI |
| Email: | [email protected] |
