購買 H24-1A69與BYCHPS
購買即有保證

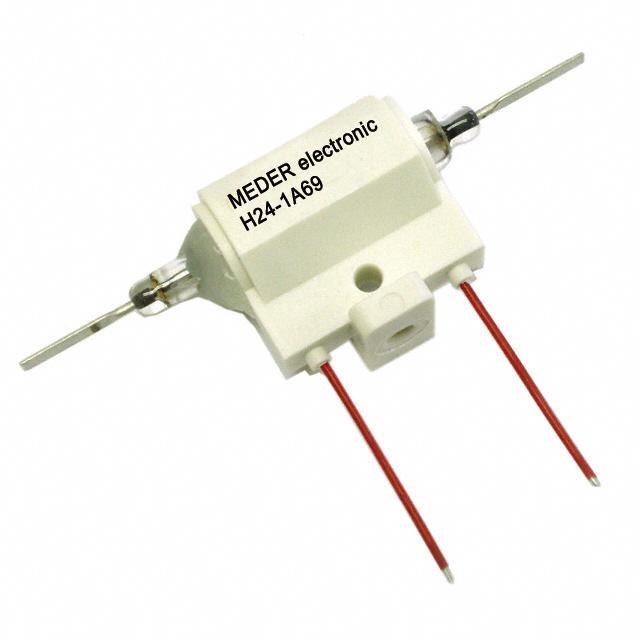

H24-1A69
- 型號:
- H24-1A69
- 描述:
- RELAY REED SPST 3A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13540 Pieces
- 數據表:
- H24-1A69.pdf
簡單介紹
BYCHIPS是 H24-1A69的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的H24-1A69購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 16.8 VDC |
|---|---|
| 關閉電壓（最小）: | 3.6 VDC |
| 端接類型: | Wire Leads |
| 切換電壓: | 10000VAC, 10000VDC - Max |
| 系列: | H |
| 發布時間: | 1.5ms |
| 繼電器類型: | Reed |
| 封装: | Bulk |
| 其他名稱: | 374-1307 H24-1A69-ND H241A69 Q2735106 |
| 工作溫度: | -20°C ~ 70°C |
| 操作時間: | 3ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | H24-1A69 |
| 特徵: | - |
| 展開說明: | Reed Relay SPST-NO (1 Form A) 24VDC Coil Chassis Mount |
| 描述: | RELAY REED SPST 3A 24V |
| 觸點額定值（電流）: | 3A |
| 觸點材料: | - |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 700 Ohms |
| 線圈功率: | 822 mW |
| 線圈電流: | 34.29mA |
| Email: | [email protected] |
