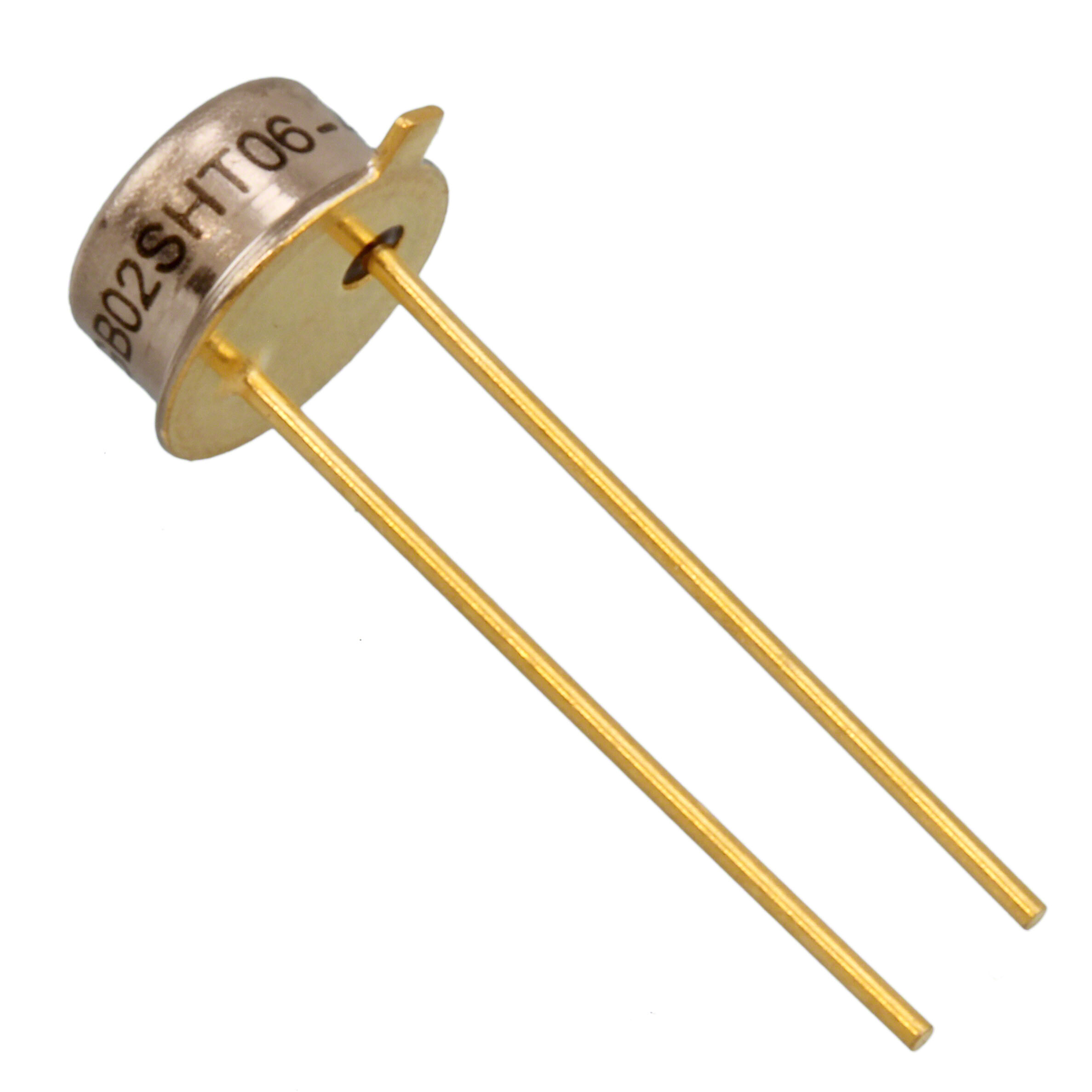

GB02SHT06-46
- 型號:
- GB02SHT06-46
- 描述:
- DIODE SCHOTTKY 600V 4A
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16332 Pieces
- 數據表:
- GB02SHT06-46.pdf
簡單介紹
BYCHIPS是 GB02SHT06-46的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的GB02SHT06-46購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 正向（Vf）（最大）: | 1.6V @ 1A |
|---|---|
| 電壓 - （Vr）（最大）: | 600V |
| 供應商設備封裝: | TO-46 |
| 速度: | No Recovery Time > 500mA (Io) |
| 系列: | - |
| 反向恢復時間（trr）: | 0ns |
| 封装: | Bulk |
| 封裝/箱體: | TO-206AB, TO-46-3 Metal Can |
| 其他名稱: | 1242-1256 |
| 工作溫度 - 結: | -55°C ~ 225°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | GB02SHT06-46 |
| 展開說明: | Diode Silicon Carbide Schottky 600V 4A (DC) Through Hole TO-46 |
| 二極管類型: | Silicon Carbide Schottky |
| 描述: | DIODE SCHOTTKY 600V 4A |
| 電流 - Vr時反向漏電: | 5µA @ 600V |
| 電流 - 平均整流（Io）: | 4A (DC) |
| 電容@ Vr，F時: | 76pF @ 1V, 1MHz |
| Email: | [email protected] |
