購買 G8V-RH-1A7T-R-DC12與BYCHPS
購買即有保證

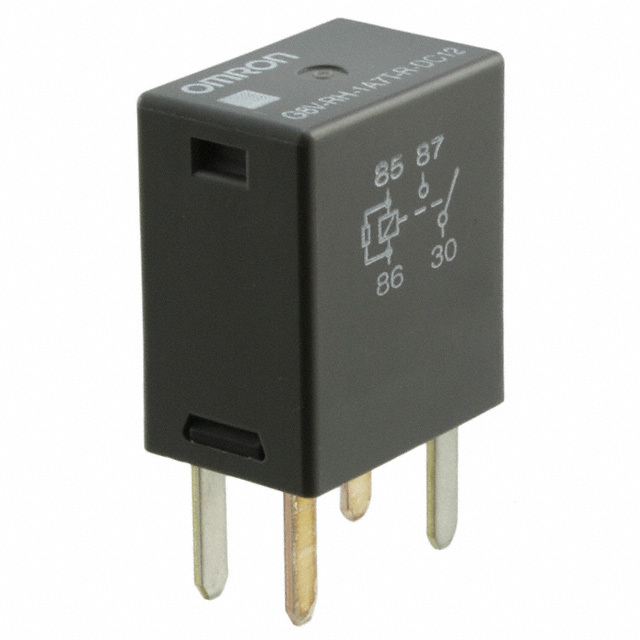

G8V-RH-1A7T-R-DC12
- 型號:
- G8V-RH-1A7T-R-DC12
- 製造商:
- Omron
- 描述:
- RELAY AUTOMOTIVE SPST 35A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17501 Pieces
簡單介紹
BYCHIPS是 G8V-RH-1A7T-R-DC12的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G8V-RH-1A7T-R-DC12購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 8 VDC |
|---|---|
| 關閉電壓（最小）: | 1 VDC |
| 端接類型: | Plug In |
| 切換電壓: | 16VDC - Max |
| 系列: | G8V-RH |
| 發布時間: | 20ms |
| 繼電器類型: | Automotive |
| 封装: | Bulk |
| 其他名稱: | G8VRH1A7TRDC12 Z2648 |
| 工作溫度: | -40°C ~ 125°C |
| 操作時間: | 20ms |
| 安裝類型: | Socketable |
| 製造商標準交貨期: | 2 Weeks |
| 製造商零件編號: | G8V-RH-1A7T-R-DC12 |
| 特徵: | - |
| 展開說明: | Automotive Relay SPST-NO (1 Form A) 12VDC Coil Socketable |
| 描述: | RELAY AUTOMOTIVE SPST 35A 12V |
| 觸點額定值（電流）: | 35A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 124 Ohms |
| 線圈功率: | 1.6 W |
| Email: | [email protected] |
