購買 G8ND-2 DC12 SK與BYCHPS
購買即有保證

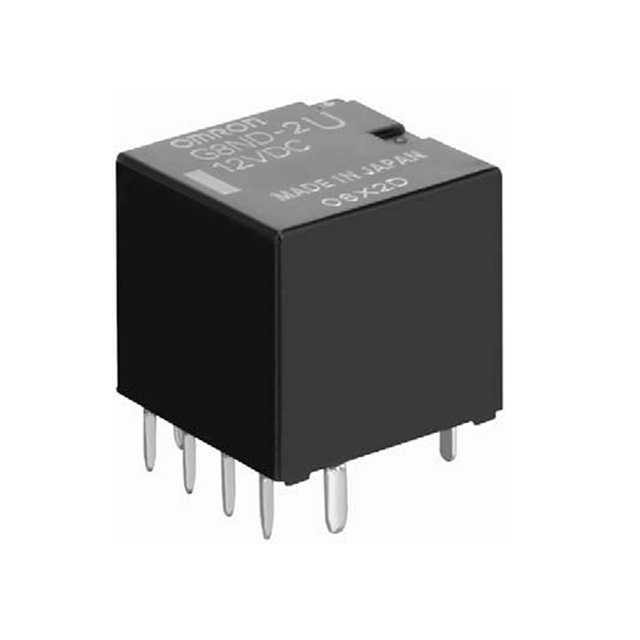

G8ND-2 DC12 SK
- 型號:
- G8ND-2 DC12 SK
- 製造商:
- Omron
- 描述:
- RELAY AUTOMOTIVE SPDT 30A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16869 Pieces
簡單介紹
BYCHIPS是 G8ND-2 DC12 SK的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G8ND-2 DC12 SK購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 7.2 VDC |
|---|---|
| 關閉電壓（最小）: | 1 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 16VDC - Max |
| 系列: | G8ND-2 |
| 發布時間: | 10ms |
| 繼電器類型: | Automotive |
| 封装: | Bulk |
| 其他名稱: | G5T 6000F G8ND-2 DC12 G8ND-2DC12SK G8ND212DCSK G8ND2DC12 G8ND2DC12SK G8ND2S12DCSK Z2777 |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 10ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | G8ND-2 DC12 SK |
| 特徵: | - |
| 展開說明: | Automotive Relay SPDT (1 Form C) Dual 12VDC Coil Through Hole |
| 描述: | RELAY AUTOMOTIVE SPDT 30A 12V |
| 觸點額定值（電流）: | 30A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | SPDT (1 Form C) Dual |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 225 Ohms |
| 線圈功率: | 640 mW |
| 線圈電流: | 53.3mA |
| Email: | [email protected] |
G8ND-2 DC12 SK的相似型號
