購買 G7SA-5A1B-DC24與BYCHPS
購買即有保證

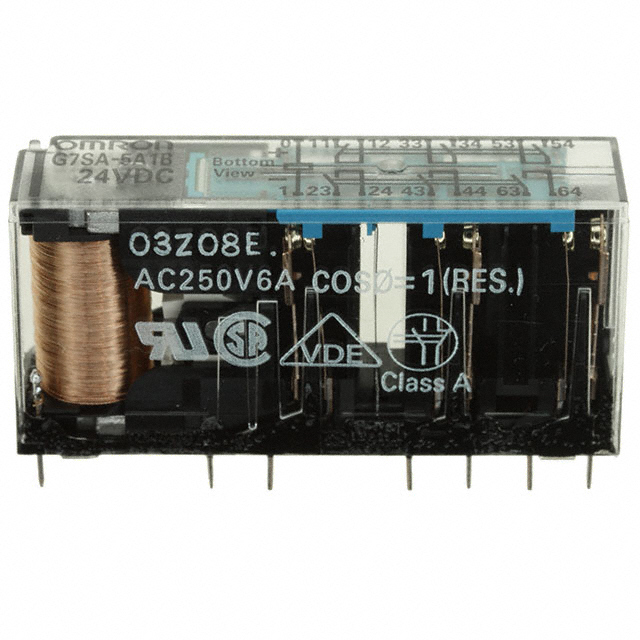

G7SA-5A1B-DC24
- 型號:
- G7SA-5A1B-DC24
- 描述:
- RELAY SAFETY 6PST 6A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17891 Pieces
簡單介紹
BYCHIPS是 G7SA-5A1B-DC24的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G7SA-5A1B-DC24購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VDC |
|---|---|
| 關閉電壓（最小）: | 2.4 VDC |
| 端接類型: | Plug In |
| 切換電壓: | 250VAC, 125VDC - Max |
| 系列: | G7SA |
| 發布時間: | 10ms |
| 繼電器類型: | Safety |
| 封装: | Bulk |
| 其他名稱: | G7SA-5A1B DC24 G7SA5A1BDC24 Z2944 Z6050 Z6050-ND |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 20ms |
| 安裝類型: | Socketable |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 1 Weeks |
| 製造商零件編號: | G7SA-5A1B-DC24 |
| 特徵: | Sealed - Flux Protection |
| 展開說明: | Safety Relay 6PST (5 Form A, 1 Form B) 24VDC Coil Socketable |
| 描述: | RELAY SAFETY 6PST 6A 24V |
| 觸點額定值（電流）: | 6A |
| 觸點材料: | Silver (Ag), Gold (Au) |
| 聯繫表: | 6PST (5 Form A, 1 Form B) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1.15 kOhms |
| 線圈功率: | 500 mW |
| 線圈電流: | 20.8mA |
| Email: | [email protected] |
