購買 G7L-2A-P-PV-DC24與BYCHPS
購買即有保證

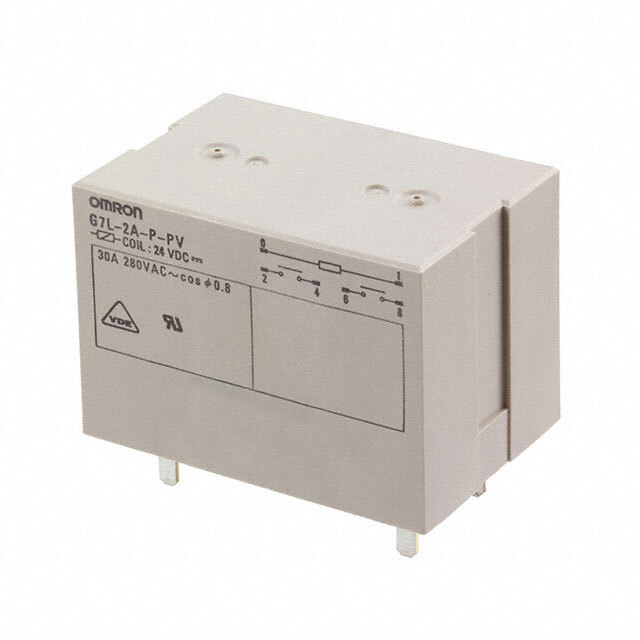

G7L-2A-P-PV-DC24
- 型號:
- G7L-2A-P-PV-DC24
- 製造商:
- Omron
- 描述:
- RELAY GEN PURPOSE DPST 30A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17961 Pieces
簡單介紹
BYCHIPS是 G7L-2A-P-PV-DC24的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G7L-2A-P-PV-DC24購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VDC |
|---|---|
| 關閉電壓（最小）: | 2.4 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 277VAC - Max |
| 系列: | G7L-PV |
| 發布時間: | 30ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | G7L-2A-P-PV-DC24 BYOMI G7L2APPVDC24 Z4255 |
| 工作溫度: | -25°C ~ 85°C |
| 操作時間: | 30ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | G7L-2A-P-PV-DC24 |
| 特徵: | For Photovoltaic Power Systems |
| 展開說明: | General Purpose Relay DPST (2 Form A) 24VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE DPST 30A 24V |
| 觸點額定值（電流）: | 30A |
| 觸點材料: | Silver Alloy |
| 聯繫表: | DPST (2 Form A) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 250 Ohms |
| 線圈功率: | 2.3 W |
| 線圈電流: | 95.8mA |
| Email: | [email protected] |
