購買 G6L-1P-DC3與BYCHPS
購買即有保證

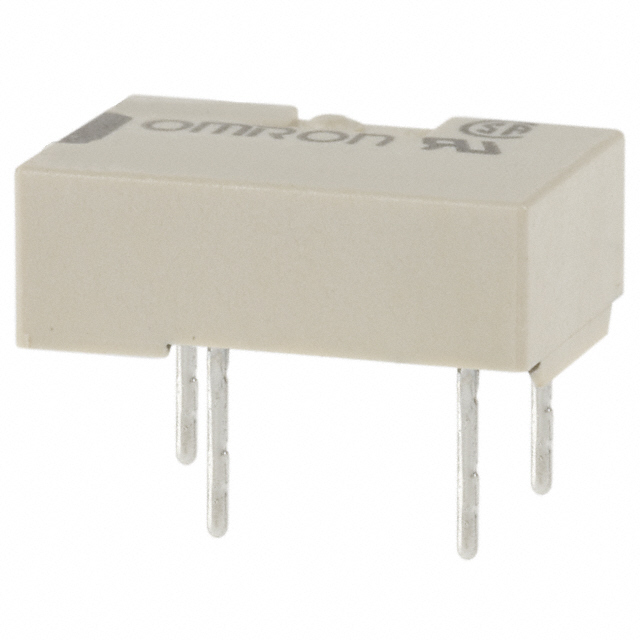

G6L-1P-DC3
- 型號:
- G6L-1P-DC3
- 製造商:
- Omron
- 描述:
- RELAY TELECOM SPST 1A 3V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16335 Pieces
- 數據表:
- G6L-1P-DC3.pdf
簡單介紹
BYCHIPS是 G6L-1P-DC3的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G6L-1P-DC3購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 2.25 VDC |
|---|---|
| 關閉電壓（最小）: | 0.3 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 125VAC, 60VDC - Max |
| 系列: | G6L |
| 發布時間: | 5ms |
| 繼電器類型: | Telecom |
| 封装: | Tube |
| 其他名稱: | G6L1P3DC G6L1PDC3 G6Y 8002M Z1226 |
| 工作溫度: | -40°C ~ 70°C |
| 操作時間: | 5ms |
| 安裝類型: | Through Hole |
| 製造商標準交貨期: | 17 Weeks |
| 製造商零件編號: | G6L-1P-DC3 |
| 特徵: | Sealed - Fully |
| 展開說明: | Telecom Relay SPST-NO (1 Form A) Through Hole |
| 描述: | RELAY TELECOM SPST 1A 3V |
| 觸點額定值（電流）: | 1A |
| 觸點材料: | - |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 3VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 50 Ohms |
| 線圈功率: | 180 mW |
| 線圈電流: | 60mA |
| Email: | [email protected] |
