購買 G6B-48BND DC5與BYCHPS
購買即有保證

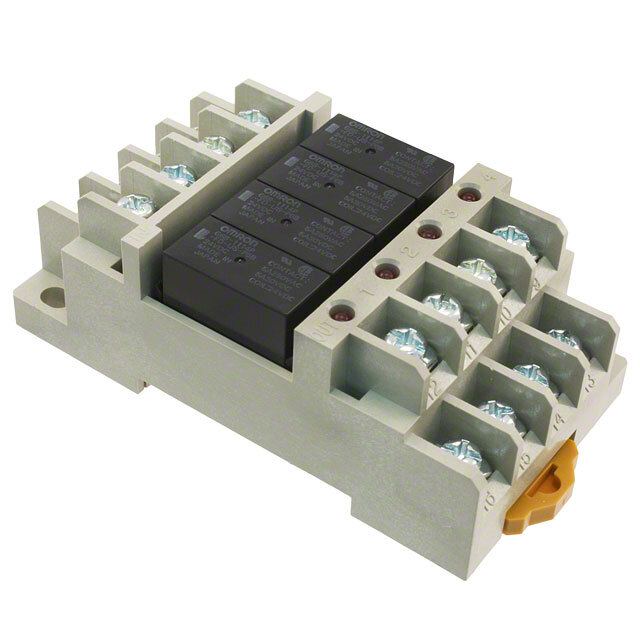

G6B-48BND DC5
- 型號:
- G6B-48BND DC5
- 製造商:
- Omron
- 描述:
- RELAY GENERAL PURPOSE 4PST 2A 5V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17771 Pieces
簡單介紹
BYCHIPS是 G6B-48BND DC5的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G6B-48BND DC5購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 4 VDC |
|---|---|
| 關閉電壓（最小）: | 0.5 VDC |
| 端接類型: | Screw Terminal |
| 切換電壓: | 380VAC, 125VDC - Max |
| 系列: | G6B-4 |
| 發布時間: | 15ms |
| 繼電器類型: | General Purpose with Socket |
| 封装: | Bulk |
| 其他名稱: | G6B-48BNDDC5 G6B48BNDDC5NC |
| 工作溫度: | -25°C ~ 55°C |
| 操作時間: | 10ms |
| 安裝類型: | DIN Rail |
| 製造商零件編號: | G6B-48BND DC5 |
| 特徵: | Diode, LED Indicator |
| 展開說明: | General Purpose with Socket Relay 4PST (4 Form A) DIN Rail |
| 描述: | RELAY GENERAL PURPOSE 4PST 2A 5V |
| 觸點額定值（電流）: | 2A |
| 觸點材料: | - |
| 聯繫表: | 4PST (4 Form A) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 125 Ohms |
| 線圈功率: | 200 mW |
| 線圈電流: | 35.5mA |
| Email: | [email protected] |
