購買 G2RL-24 DC5與BYCHPS
購買即有保證

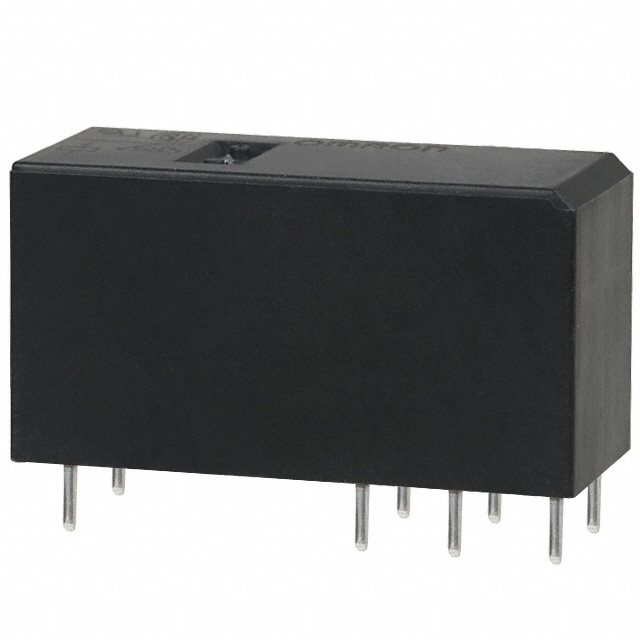

G2RL-24 DC5
- 型號:
- G2RL-24 DC5
- 製造商:
- Omron
- 描述:
- RELAY GENERAL PURPOSE DPDT 8A 5V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13199 Pieces
- 數據表:
- G2RL-24 DC5.pdf
簡單介紹
BYCHIPS是 G2RL-24 DC5的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的G2RL-24 DC5購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 3.5 VDC |
|---|---|
| 關閉電壓（最小）: | 0.5 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 440VAC, 300VDC - Max |
| 系列: | G2RL |
| 發布時間: | 5ms |
| 繼電器類型: | General Purpose |
| 封装: | Tube |
| 其他名稱: | G2RL-24-DC5 G2RL1031M G2RL245DC G2RL24DC5 G2RL24DC5BYOMB Z146 |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 15ms |
| 安裝類型: | Through Hole |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | G2RL-24 DC5 |
| 特徵: | Insulation - Class B, Sealed - Fully |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole |
| 描述: | RELAY GENERAL PURPOSE DPDT 8A 5V |
| 觸點額定值（電流）: | 8A |
| 觸點材料: | Silver Alloy, Cadmium Free |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 62.5 Ohms |
| 線圈功率: | 400 mW |
| 線圈電流: | 80mA |
| Email: | [email protected] |
