購買 FSL126MRTWDTU與BYCHPS
購買即有保證

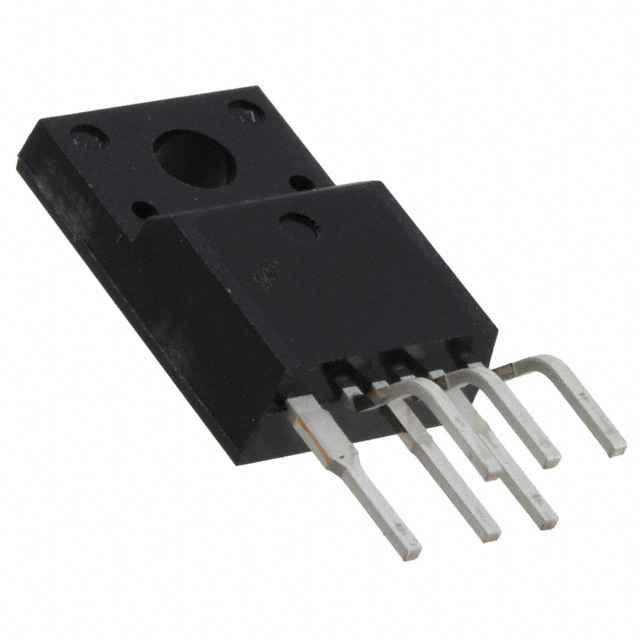

FSL126MRTWDTU
- 型號:
- FSL126MRTWDTU
- 描述:
- IC OFF-LINE SWITCH PWM TO220-6
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18435 Pieces
簡單介紹
BYCHIPS是 FSL126MRTWDTU的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FSL126MRTWDTU購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 電源（Vcc / VDD）: | 7.5 V ~ 26 V |
|---|---|
| 電壓 - 啟動: | 12V |
| 電壓 - 擊穿: | 650V |
| 拓撲: | Flyback |
| 供應商設備封裝: | TO-220F-6L (W-Forming) |
| 系列: | FPS™ |
| 功率（瓦特）: | 40W |
| 封装: | Tube |
| 封裝/箱體: | TO-220-6 Full Pack, Formed Leads |
| 輸出隔離: | Isolated |
| 工作溫度: | -40°C ~ 125°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 6 Weeks |
| 製造商零件編號: | FSL126MRTWDTU |
| 內部開關（S）: | Yes |
| 頻率 - 開關: | 67kHz |
| 故障保護: | Current Limiting, Over Load, Over Temperature, Over Voltage |
| 展開說明: | Converter Offline Flyback Topology 67kHz TO-220F-6L (W-Forming) |
| 佔空比: | 67% |
| 描述: | IC OFF-LINE SWITCH PWM TO220-6 |
| 控制功能: | - |
| Email: | [email protected] |
