購買 FPV1006-125-R與BYCHPS
購買即有保證

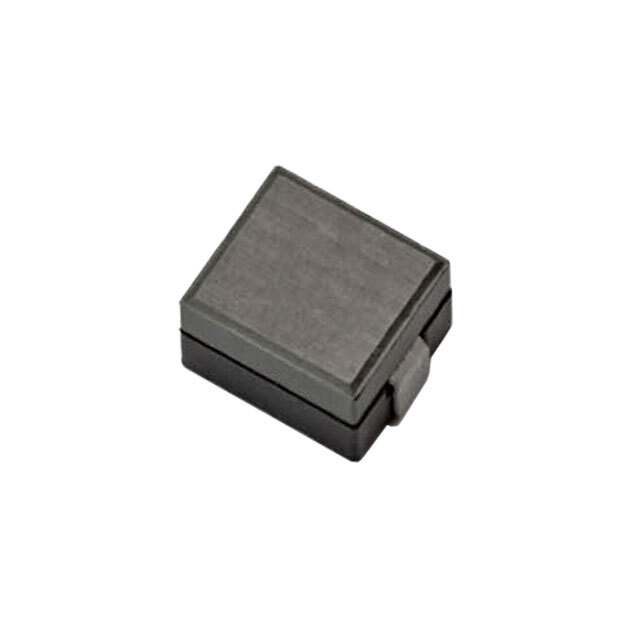

FPV1006-125-R
- 型號:
- FPV1006-125-R
- 製造商:
- Bussmann (Eaton)
- 描述:
- FIXED IND 125NH 25A 0.41 MOHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18037 Pieces
簡單介紹
BYCHIPS是 FPV1006-125-R的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FPV1006-125-R購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±10% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.382" L x 0.331" W (9.70mm x 8.40mm) |
| 屏蔽: | Shielded |
| 系列: | FPV1006 |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 283-4577-2 |
| 工作溫度: | -55°C ~ 125°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Ferrite |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | FPV1006-125-R |
| 電感: | 125nH |
| 高度 - 座高（最大）: | 0.252" (6.40mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | - |
| 展開說明: | 125nH Shielded Wirewound Inductor 25A 0.41 mOhm Max Nonstandard |
| 描述: | FIXED IND 125NH 25A 0.41 MOHM |
| 直流電阻（DCR）: | 0.41 mOhm Max |
| 目前評級: | 25A |
| 電流 - 飽和: | 57A |
| Email: | [email protected] |
