購買 FJAFS1510ATU與BYCHPS
購買即有保證

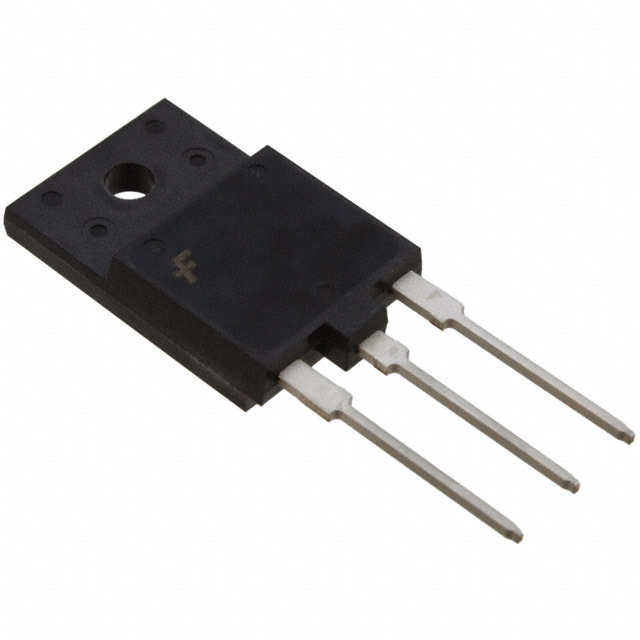

FJAFS1510ATU
- 型號:
- FJAFS1510ATU
- 描述:
- TRANS NPN 750V 6A TO-3PF
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14992 Pieces
- 數據表:
- FJAFS1510ATU.pdf
簡單介紹
BYCHIPS是 FJAFS1510ATU的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FJAFS1510ATU購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 750V |
|---|---|
| Vce飽和（最大）@ IB，IC: | 500mV @ 1.5A, 6A |
| 晶體管類型: | NPN |
| 供應商設備封裝: | TO-3PF-3 |
| 系列: | ESBC™ |
| 功率 - 最大: | 60W |
| 封装: | Tube |
| 封裝/箱體: | TO-3P-3 Full Pack |
| 其他名稱: | FJAFS1510ATU-ND |
| 工作溫度: | -55°C ~ 125°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 6 Weeks |
| 製造商零件編號: | FJAFS1510ATU |
| 頻率 - 轉換: | 15.4MHz |
| 展開說明: | Bipolar (BJT) Transistor NPN 750V 6A 15.4MHz 60W Through Hole TO-3PF-3 |
| 描述: | TRANS NPN 750V 6A TO-3PF |
| 直流電流增益（HFE）（最小值）@ IC，的Vce: | 7 @ 3A, 5V |
| 電流 - 集電極截止（最大）: | 100µA |
| 電流 - 集電極（Ic）（最大）: | 6A |
| Email: | [email protected] |
