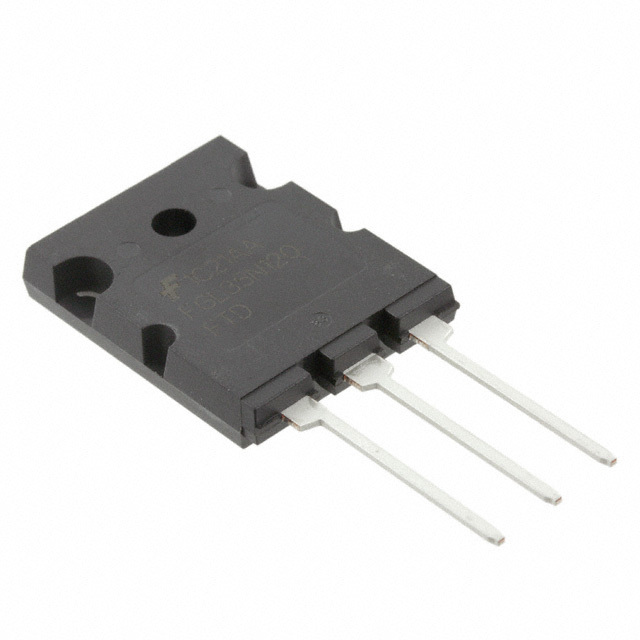

FGL35N120FTDTU
- 型號:
- FGL35N120FTDTU
- 描述:
- IGBT 1200V 70A 368W TO264
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17093 Pieces
簡單介紹
BYCHIPS是 FGL35N120FTDTU的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FGL35N120FTDTU購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 1200V |
|---|---|
| 的VCE（on）（最大）@ VGE，IC: | 2.2V @ 15V, 35A |
| 測試條件: | 600V, 35A, 10 Ohm, 15V |
| Td（開/關）@ 25°C: | 34ns/172ns |
| 開關能量: | 2.5mJ (on), 1.7mJ (off) |
| 供應商設備封裝: | TO-264-3 |
| 系列: | - |
| 反向恢復時間（trr）: | 337ns |
| 功率 - 最大: | 368W |
| 封装: | Tube |
| 封裝/箱體: | TO-264-3, TO-264AA |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 6 Weeks |
| 製造商零件編號: | FGL35N120FTDTU |
| 輸入類型: | Standard |
| IGBT類型: | Trench Field Stop |
| 柵極電荷: | 210nC |
| 展開說明: | IGBT Trench Field Stop 1200V 70A 368W Through Hole TO-264-3 |
| 描述: | IGBT 1200V 70A 368W TO264 |
| 電流 - 集電極脈衝（ICM）: | 105A |
| 電流 - 集電極（Ic）（最大）: | 70A |
| Email: | [email protected] |
