購買 FGA60N65SMD與BYCHPS
購買即有保證

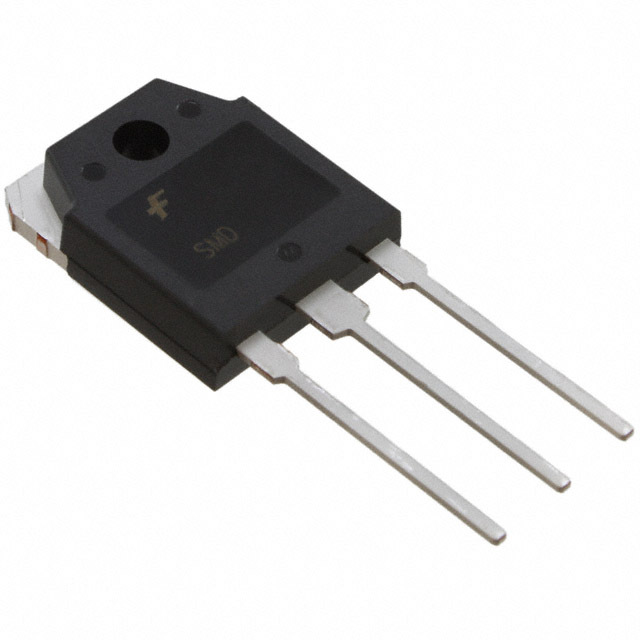

FGA60N65SMD
- 型號:
- FGA60N65SMD
- 描述:
- IGBT 650V 120A 600W TO3P
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14787 Pieces
- 數據表:
- FGA60N65SMD.pdf
簡單介紹
BYCHIPS是 FGA60N65SMD的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FGA60N65SMD購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 650V |
|---|---|
| 的VCE（on）（最大）@ VGE，IC: | 2.5V @ 15V, 60A |
| 測試條件: | 400V, 60A, 3 Ohm, 15V |
| Td（開/關）@ 25°C: | 18ns/104ns |
| 開關能量: | 1.54mJ (on), 450µJ (off) |
| 供應商設備封裝: | TO-3PN |
| 系列: | - |
| 反向恢復時間（trr）: | 47ns |
| 功率 - 最大: | 600W |
| 封装: | Tube |
| 封裝/箱體: | TO-3P-3, SC-65-3 |
| 其他名稱: | FGA60N65SMD-ND |
| 工作溫度: | -55°C ~ 175°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 37 Weeks |
| 製造商零件編號: | FGA60N65SMD |
| 輸入類型: | Standard |
| IGBT類型: | Field Stop |
| 柵極電荷: | 189nC |
| 展開說明: | IGBT Field Stop 650V 120A 600W Through Hole TO-3PN |
| 描述: | IGBT 650V 120A 600W TO3P |
| 電流 - 集電極脈衝（ICM）: | 180A |
| 電流 - 集電極（Ic）（最大）: | 120A |
| Email: | [email protected] |
