購買 FDME430NT與BYCHPS
購買即有保證

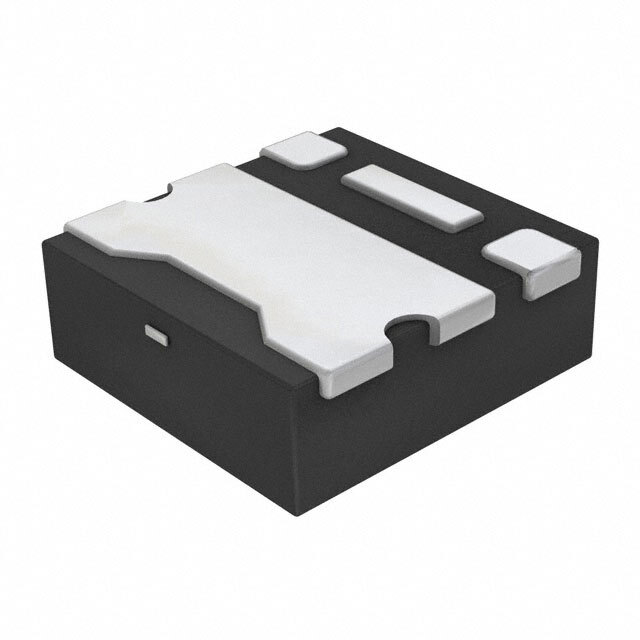

FDME430NT
- 型號:
- FDME430NT
- 描述:
- MOSFET N-CH 30V 6A MICROFET1.6
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19899 Pieces
- 數據表:
- FDME430NT.pdf
簡單介紹
BYCHIPS是 FDME430NT的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FDME430NT購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1.5V @ 250µA |
|---|---|
| Vgs（最大）: | ±12V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | MicroFet 1.6x1.6 Thin |
| 系列: | PowerTrench® |
| RDS（ON）（最大值）@標識，柵極電壓: | 40 mOhm @ 6A, 4.5V |
| 功率耗散（最大）: | 2.1W (Ta) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 6-PowerUFDFN |
| 其他名稱: | FDME430NT-ND FDME430NTTR |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | FDME430NT |
| 輸入電容（Ciss）（Max）@ Vds: | 760pF @ 15V |
| 柵極電荷（Qg）（Max）@ Vgs: | 9nC @ 4.5V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 30V 6A (Ta) 2.1W (Ta) Surface Mount MicroFet 1.6x1.6 Thin |
| 驅動電壓（最大Rds開，最小Rds開）: | 1.8V, 4.5V |
| 漏極至源極電壓（Vdss）: | 30V |
| 描述: | MOSFET N-CH 30V 6A MICROFET1.6 |
| 電流 - 25°C連續排水（Id）: | 6A (Ta) |
| Email: | [email protected] |
