購買 FDMD84100與BYCHPS
購買即有保證

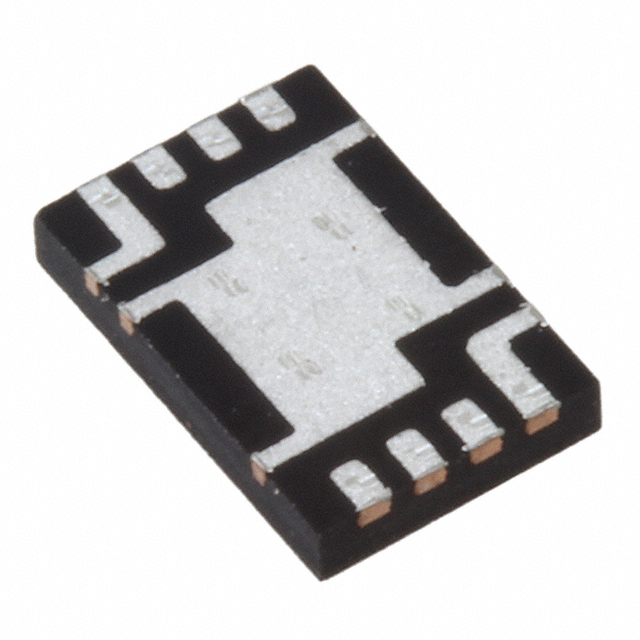

FDMD84100
- 型號:
- FDMD84100
- 描述:
- MOSFET 2N-CH 100V 7A 8-PQFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14695 Pieces
- 數據表:
- FDMD84100.pdf
簡單介紹
BYCHIPS是 FDMD84100的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FDMD84100購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 4V @ 250µA |
|---|---|
| 供應商設備封裝: | 8-PQFN (3.3x5) |
| 系列: | PowerTrench® |
| RDS（ON）（最大值）@標識，柵極電壓: | 20 mOhm @ 7A, 10V |
| 功率 - 最大: | 2.1W |
| 封装: | Original-Reel® |
| 封裝/箱體: | 8-PowerWDFN |
| 其他名稱: | FDMD84100DKR |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | FDMD84100 |
| 輸入電容（Ciss）（Max）@ Vds: | 980pF @ 50V |
| 柵極電荷（Qg）（Max）@ Vgs: | 16nC @ 10V |
| FET型: | 2 N-Channel (Dual) Common Source |
| FET特點: | Standard |
| 展開說明: | Mosfet Array 2 N-Channel (Dual) Common Source 100V 7A 2.1W Surface Mount 8-PQFN (3.3x5) |
| 漏極至源極電壓（Vdss）: | 100V |
| 描述: | MOSFET 2N-CH 100V 7A 8-PQFN |
| 電流 - 25°C連續排水（Id）: | 7A |
| Email: | [email protected] |
