購買 FD6M045N06與BYCHPS
購買即有保證

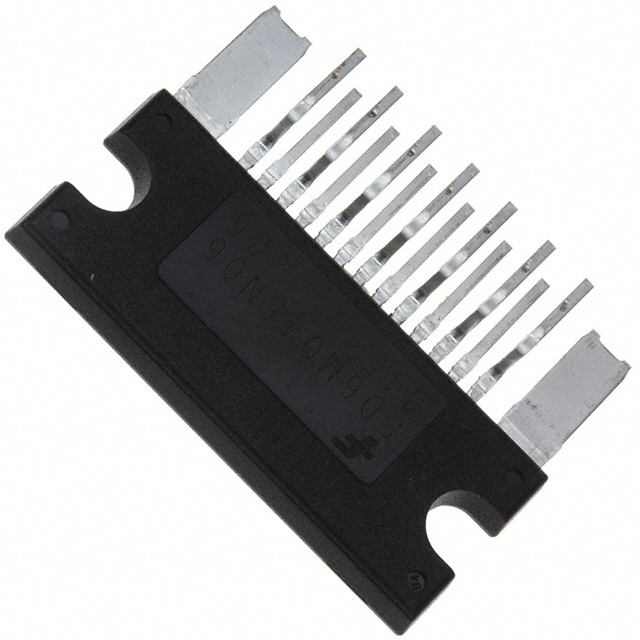

FD6M045N06
- 型號:
- FD6M045N06
- 描述:
- MOSFET 2N-CH 60V 60A EPM15
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13638 Pieces
- 數據表:
- FD6M045N06.pdf
簡單介紹
BYCHIPS是 FD6M045N06的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的FD6M045N06購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 4V @ 250µA |
|---|---|
| 供應商設備封裝: | EPM15 |
| 系列: | Power-SPM™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 4.5 mOhm @ 40A, 10V |
| 功率 - 最大: | - |
| 封装: | Tube |
| 封裝/箱體: | EPM15 |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | FD6M045N06 |
| 輸入電容（Ciss）（Max）@ Vds: | 3890pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 87nC @ 10V |
| FET型: | 2 N-Channel (Dual) |
| FET特點: | Standard |
| 展開說明: | Mosfet Array 2 N-Channel (Dual) 60V 60A Through Hole EPM15 |
| 漏極至源極電壓（Vdss）: | 60V |
| 描述: | MOSFET 2N-CH 60V 60A EPM15 |
| 電流 - 25°C連續排水（Id）: | 60A |
| Email: | [email protected] |
