購買 EZT-VKCTYP1HA與BYCHPS
購買即有保證

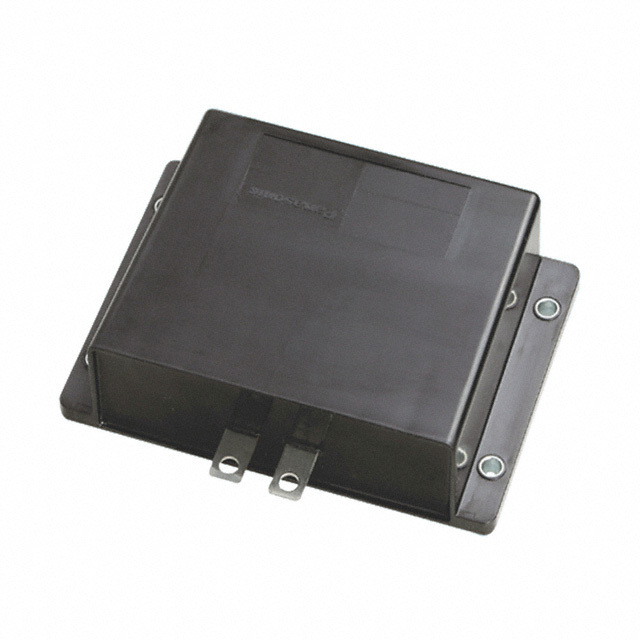

EZT-VKCTYP1HA
- 型號:
- EZT-VKCTYP1HA
- 製造商:
- Panasonic
- 描述:
- CAP FILM 581UF 450VDC CHAS MT
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13660 Pieces
簡單介紹
BYCHIPS是 EZT-VKCTYP1HA的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的EZT-VKCTYP1HA購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 450V |
|---|---|
| 額定電壓 - AC: | - |
| 公差: | -5%, +10% |
| 終止: | - |
| 尺寸/尺寸: | 6.457" L x 4.528" W (164.00mm x 115.00mm) |
| 系列: | - |
| 封装: | Bulk |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | EZTVKCTYP1HA P16791 |
| 工作溫度: | -40°C ~ 105°C |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 17 Weeks |
| 製造商零件編號: | EZT-VKCTYP1HA |
| 引線間距: | 0.866" (22.00mm) |
| 高度 - 座高（最大）: | 1.693" (43.00mm) |
| 特徵: | Low ESR |
| 展開說明: | 581µF -5%, +10% Film Capacitor 450V Polypropylene (PP), Metallized Nonstandard |
| ESR（等效串聯電阻）: | 0.8 mOhm |
| 絕緣材料: | Polypropylene (PP), Metallized |
| 描述: | CAP FILM 581UF 450VDC CHAS MT |
| 電容: | 581µF |
| 應用: | DC Link, DC Filtering |
| Email: | [email protected] |
