購買 EXB-H8E333J與BYCHPS
購買即有保證

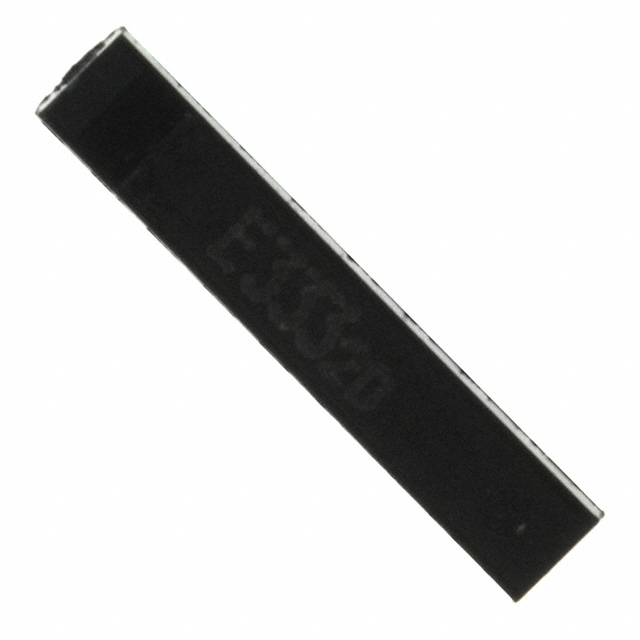

EXB-H8E333J
- 型號:
- EXB-H8E333J
- 製造商:
- Panasonic
- 描述:
- RES ARRAY 7 RES 33K OHM 8SSIP
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13574 Pieces
- 數據表:
- EXB-H8E333J.pdf
簡單介紹
BYCHIPS是 EXB-H8E333J的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的EXB-H8E333J購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 公差: | ±5% |
|---|---|
| 溫度係數: | ±200ppm/°C |
| 供應商設備封裝: | 8-SIP |
| 尺寸/尺寸: | 0.429" L x 0.087" W (10.89mm x 2.20mm) |
| 系列: | EXB |
| 電阻（歐姆）: | 33k |
| 每個元件的功率: | 62.5mW |
| 封装: | Cut Tape (CT) |
| 封裝/箱體: | 8-SSIP |
| 其他名稱: | EXB-H8E333 EXBH8E333 R7333 R7333CT |
| 工作溫度: | -55°C ~ 125°C |
| 電阻數: | 7 |
| 引腳數目: | 8 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | EXB-H8E333J |
| 高度 - 座高（最大）: | 0.106" (2.69mm) |
| 展開說明: | 33k Ohm ±5% 62.5mW Power Per Element Bussed Resistor Network/Array ±200ppm/°C 8-SSIP |
| 描述: | RES ARRAY 7 RES 33K OHM 8SSIP |
| 電路類型: | Bussed |
| 應用: | - |
| Email: | [email protected] |
