購買 EV250-2B與BYCHPS
購買即有保證

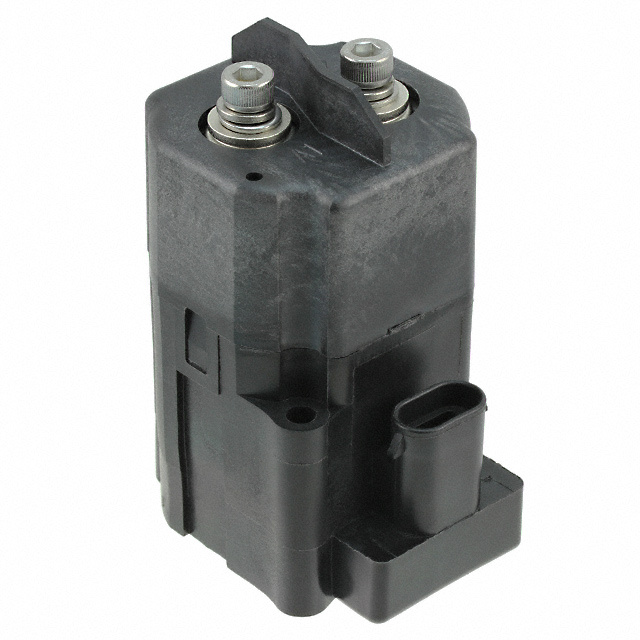

EV250-2B
- 型號:
- EV250-2B
- 描述:
- RELAY GEN PURPOSE SPST 400A 24V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 16054 Pieces
- 數據表:
- EV250-2B.pdf
簡單介紹
BYCHIPS是 EV250-2B的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的EV250-2B購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VDC |
|---|---|
| 關閉電壓（最小）: | 10 VDC |
| 端接類型: | Stud |
| 切換電壓: | 1800VDC - Max |
| 系列: | EV250, KILOVAC |
| 發布時間: | 15ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 2-1618002-6 2-1618002-6-ND A121830 |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 18ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | EV250-2B |
| 特徵: | Magnetic Blowout |
| 展開說明: | General Purpose Relay SPST-NO (1 Form X) 24VDC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE SPST 400A 24V |
| 觸點額定值（電流）: | 400A |
| 觸點材料: | - |
| 聯繫表: | SPST-NO (1 Form X) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | - |
| 線圈功率: | - |
| Email: | [email protected] |
