購買 EEH-ZK1E470R與BYCHPS
購買即有保證

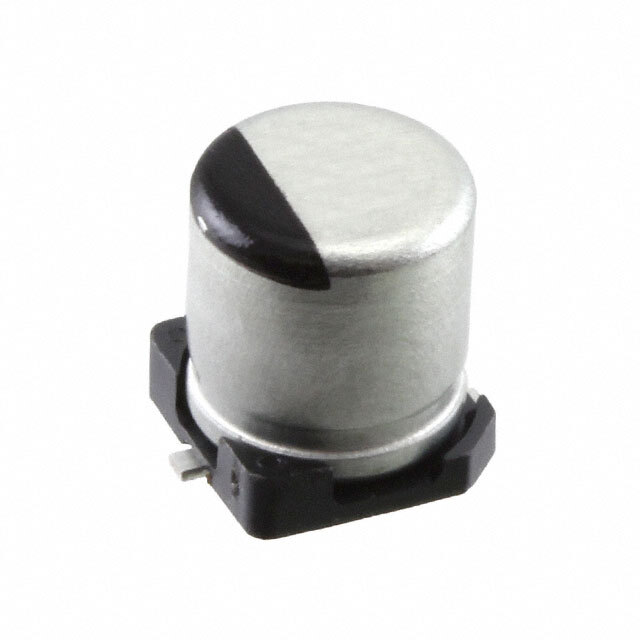

EEH-ZK1E470R
- 型號:
- EEH-ZK1E470R
- 製造商:
- Panasonic
- 描述:
- CAP ALUM POLY 47UF 20% 25V SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17411 Pieces
簡單介紹
BYCHIPS是 EEH-ZK1E470R的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的EEH-ZK1E470R購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 25V |
|---|---|
| 類型: | Hybrid |
| 公差: | ±20% |
| 表面貼裝佔地面積: | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| 尺寸/尺寸: | 0.197" Dia (5.00mm) |
| 系列: | Automotive, AEC-Q200, ZK |
| 波紋電流 - 低頻: | 99mA @ 100Hz |
| 紋波電流 - 高頻: | 660mA @ 100kHz |
| 封装: | Original-Reel® |
| 封裝/箱體: | Radial, Can - SMD |
| 其他名稱: | P121394DKR |
| 工作溫度: | -55°C ~ 125°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | EEH-ZK1E470R |
| 壽命@溫度。: | 4000 Hrs @ 125°C |
| 引線間距: | - |
| 阻抗: | - |
| 高度 - 座高（最大）: | 0.240" (6.10mm) |
| 展開說明: | 47µF ±20% 25V Aluminum Polymer Capacitor Radial, Can - SMD 80 mOhm 4000 Hrs @ 125°C |
| ESR（等效串聯電阻）: | 80 mOhm |
| 描述: | CAP ALUM POLY 47UF 20% 25V SMD |
| 電容: | 47µF |
| 應用: | Automotive |
| Email: | [email protected] |
