購買 EEE-FK1K101AQ與BYCHPS
購買即有保證

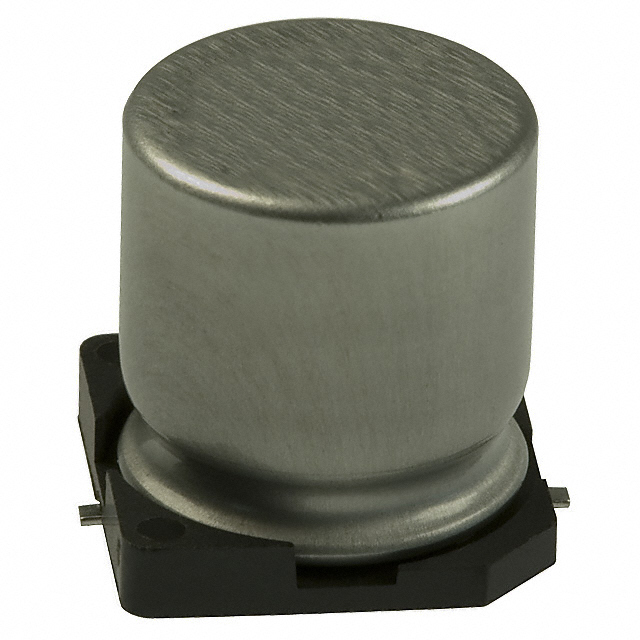

EEE-FK1K101AQ
- 型號:
- EEE-FK1K101AQ
- 製造商:
- Panasonic
- 描述:
- CAP ALUM 100UF 20% 80V SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 20668 Pieces
簡單介紹
BYCHIPS是 EEE-FK1K101AQ的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的EEE-FK1K101AQ購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 80V |
|---|---|
| 公差: | ±20% |
| 表面貼裝佔地面積: | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| 尺寸/尺寸: | 0.492" Dia (12.50mm) |
| 系列: | Automotive, AEC-Q200, FK |
| 紋波電流: | 375mA @ 120Hz |
| 極化: | Polar |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Radial, Can - SMD |
| 其他名稱: | EEEFK1K101AQ PCE4856TR |
| 工作溫度: | -55°C ~ 105°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | EEE-FK1K101AQ |
| 壽命@溫度。: | 5000 Hrs @ 105°C |
| 引線間距: | - |
| 阻抗: | 320 mOhm |
| 高度 - 座高（最大）: | 0.550" (14.00mm) |
| 展開說明: | 100µF 80V Aluminum Capacitors Radial, Can - SMD 5000 Hrs @ 105°C |
| ESR（等效串聯電阻）: | - |
| 描述: | CAP ALUM 100UF 20% 80V SMD |
| 電容: | 100µF |
| 應用: | General Purpose |
| Email: | [email protected] |
