購買 EEE-1EA221UAP與BYCHPS
購買即有保證

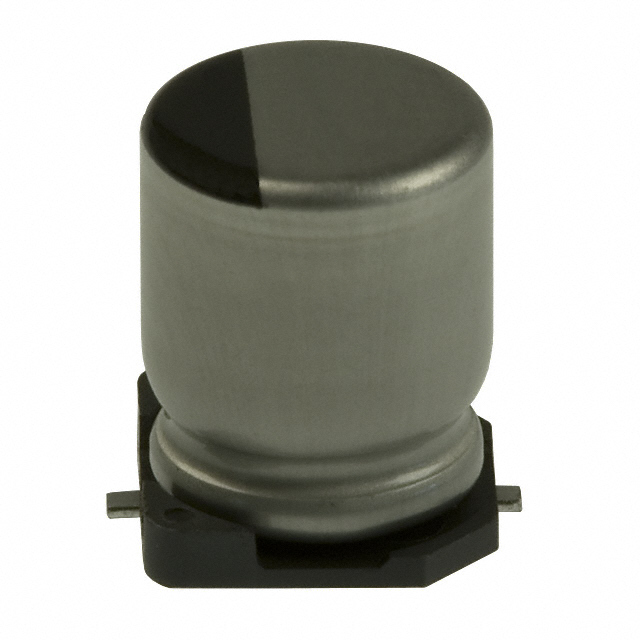

EEE-1EA221UAP
- 型號:
- EEE-1EA221UAP
- 製造商:
- Panasonic
- 描述:
- CAP ALUM 220UF 20% 25V SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15011 Pieces
簡單介紹
BYCHIPS是 EEE-1EA221UAP的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的EEE-1EA221UAP購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 25V |
|---|---|
| 公差: | ±20% |
| 表面貼裝佔地面積: | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| 尺寸/尺寸: | 0.315" Dia (8.00mm) |
| 系列: | Automotive, AEC-Q200, S |
| 紋波電流: | 230mA @ 120Hz |
| 極化: | Polar |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Radial, Can - SMD |
| 其他名稱: | EEE1EA221UAP PCE4599TR |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | EEE-1EA221UAP |
| 壽命@溫度。: | 1000 Hrs @ 85°C |
| 引線間距: | - |
| 阻抗: | - |
| 高度 - 座高（最大）: | 0.402" (10.20mm) |
| 展開說明: | 220µF 25V Aluminum Capacitors Radial, Can - SMD 1000 Hrs @ 85°C |
| ESR（等效串聯電阻）: | - |
| 描述: | CAP ALUM 220UF 20% 25V SMD |
| 電容: | 220µF |
| 應用: | General Purpose |
| Email: | [email protected] |
