購買 ECW-FD2W824K4與BYCHPS
購買即有保證

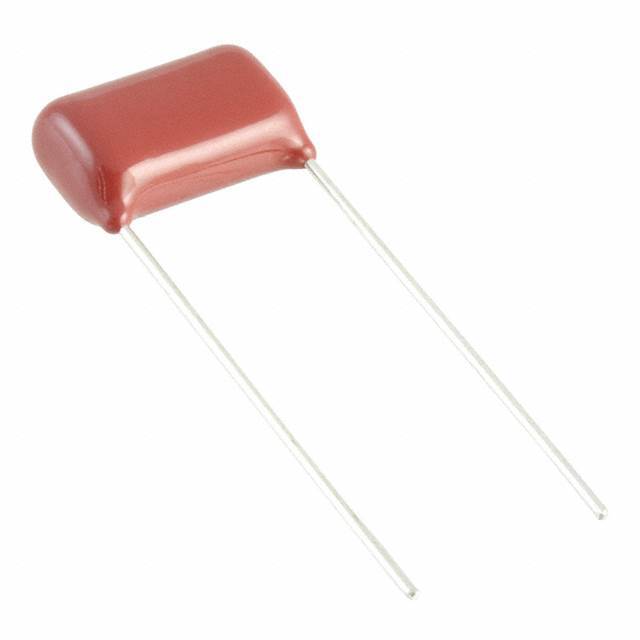

ECW-FD2W824K4
- 型號:
- ECW-FD2W824K4
- 製造商:
- Panasonic
- 描述:
- CAP FILM 0.82UF 10% 450VDC RAD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19616 Pieces
簡單介紹
BYCHIPS是 ECW-FD2W824K4的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ECW-FD2W824K4購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 450V |
|---|---|
| 額定電壓 - AC: | - |
| 公差: | ±10% |
| 終止: | PC Pins |
| 尺寸/尺寸: | 0.689" L x 0.283" W (17.50mm x 7.20mm) |
| 系列: | ECW-F(D) |
| 封装: | Tape & Box (TB) |
| 封裝/箱體: | Radial |
| 其他名稱: | ECWFD2W824K4 PCF1587TB |
| 工作溫度: | -40°C ~ 110°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | ECW-FD2W824K4 |
| 引線間距: | 0.295" (7.50mm) |
| 高度 - 座高（最大）: | 0.409" (10.40mm) |
| 特徵: | - |
| 展開說明: | 0.82µF ±10% Film Capacitor 450V Polypropylene (PP), Metallized Radial |
| ESR（等效串聯電阻）: | - |
| 絕緣材料: | Polypropylene (PP), Metallized |
| 描述: | CAP FILM 0.82UF 10% 450VDC RAD |
| 電容: | 0.82µF |
| 應用: | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Email: | [email protected] |
