購買 ECP-U1C154MA5與BYCHPS
購買即有保證

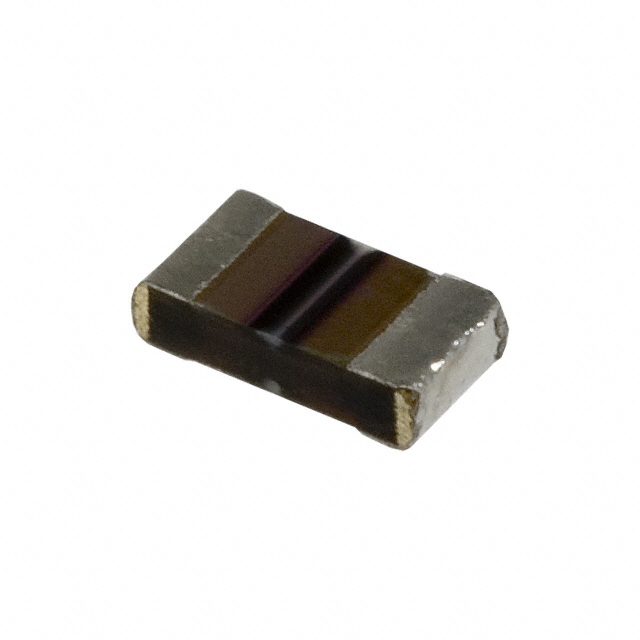

ECP-U1C154MA5
- 型號:
- ECP-U1C154MA5
- 製造商:
- Panasonic
- 描述:
- CAP FILM 0.15UF 20% 16VDC 1206
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16594 Pieces
簡單介紹
BYCHIPS是 ECP-U1C154MA5的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的ECP-U1C154MA5購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 16V |
|---|---|
| 額定電壓 - AC: | - |
| 公差: | ±20% |
| 終止: | Solder Pads |
| 尺寸/尺寸: | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| 系列: | ECP-U(A) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 1206 (3216 Metric) |
| 其他名稱: | ECPU1C154MA5 PCF1127TR |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 4 (72 Hours) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | ECP-U1C154MA5 |
| 引線間距: | - |
| 高度 - 座高（最大）: | 0.039" (1.00mm) |
| 特徵: | Low ESR |
| 展開說明: | 0.15µF ±20% Film Capacitor 16V Acrylic, Metallized - Stacked 1206 (3216 Metric) |
| ESR（等效串聯電阻）: | - |
| 絕緣材料: | Acrylic, Metallized - Stacked |
| 描述: | CAP FILM 0.15UF 20% 16VDC 1206 |
| 電容: | 0.15µF |
| 應用: | EMI, RFI Suppression |
| Email: | [email protected] |
