購買 DPPM10S33K-F與BYCHPS
購買即有保證

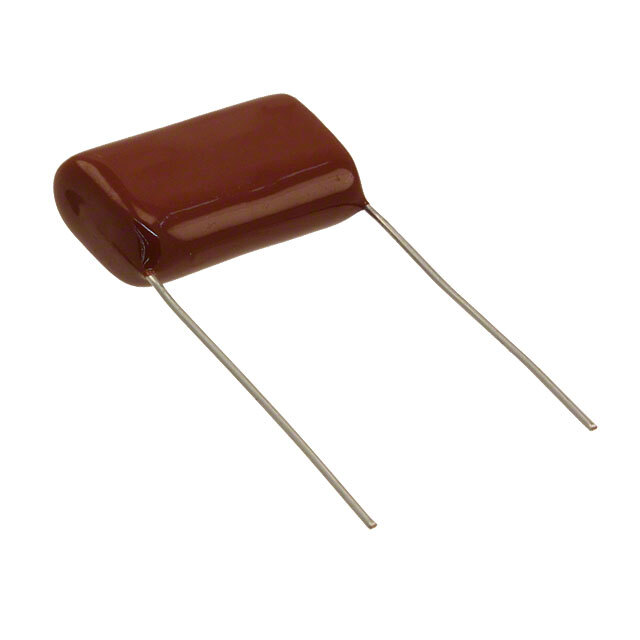

DPPM10S33K-F
- 型號:
- DPPM10S33K-F
- 描述:
- CAP FILM 0.033UF 10% 1KVDC RAD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17555 Pieces
- 數據表:
- DPPM10S33K-F.pdf
簡單介紹
BYCHIPS是 DPPM10S33K-F的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DPPM10S33K-F購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 1000V (1kV) |
|---|---|
| 額定電壓 - AC: | 450V |
| 公差: | ±10% |
| 終止: | PC Pins |
| 尺寸/尺寸: | 1.220" L x 0.512" W (31.00mm x 13.00mm) |
| 系列: | DPPM |
| 封装: | Bulk |
| 封裝/箱體: | Radial |
| 其他名稱: | 338-3215 DPPM10S33K-F-ND DPPM10S33KF |
| 工作溫度: | -40°C ~ 105°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | DPPM10S33K-F |
| 引線間距: | 1.043" (26.50mm) |
| 高度 - 座高（最大）: | 0.866" (22.00mm) |
| 特徵: | - |
| 展開說明: | 0.033µF ±10% Film Capacitor 450V 1000V (1kV) Polypropylene (PP), Metallized Radial |
| ESR（等效串聯電阻）: | - |
| 絕緣材料: | Polypropylene (PP), Metallized |
| 描述: | CAP FILM 0.033UF 10% 1KVDC RAD |
| 電容: | 0.033µF |
| 應用: | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Email: | [email protected] |
