購買 DPIULC6-6DJL與BYCHPS
購買即有保證

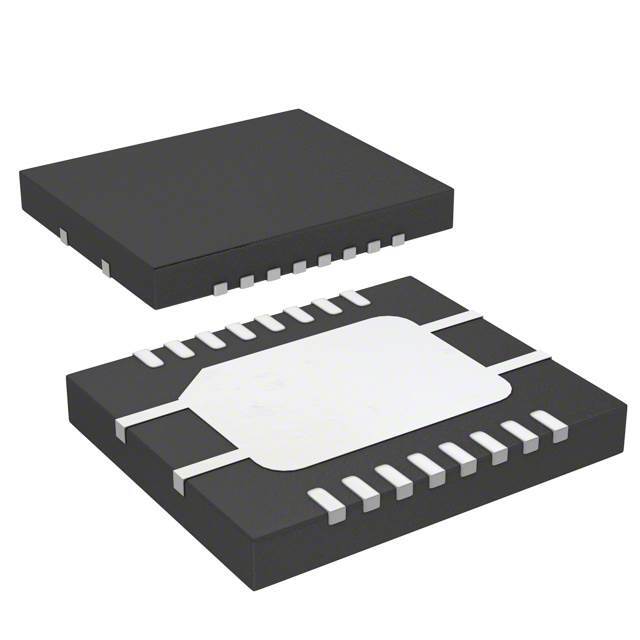

DPIULC6-6DJL
- 型號:
- DPIULC6-6DJL
- 製造商:
- ST
- 描述:
- TVS DIODE 3VWM 17VC 18DFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18393 Pieces
- 數據表:
- DPIULC6-6DJL.pdf
簡單介紹
BYCHIPS是 DPIULC6-6DJL的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DPIULC6-6DJL購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 反向隔離（標準值）: | 3V |
|---|---|
| 電壓 - 箝位（最大）@ Ipp: | 17V |
| 電壓 - 擊穿（最小值）: | 6V |
| 單向通道: | 4 |
| 類型: | Steering (Rail to Rail) |
| 供應商設備封裝: | 18-DFN (5x6) |
| 系列: | DPI |
| 電源線保護: | Yes |
| 功率峰值脈衝: | - |
| 封装: | Original-Reel® |
| 封裝/箱體: | 18-VFDFN Exposed Pad |
| 其他名稱: | 497-10559-6 |
| 工作溫度: | -40°C ~ 125°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 製造商零件編號: | DPIULC6-6DJL |
| 描述: | TVS DIODE 3VWM 17VC 18DFN |
| 電流 - 峰值脈衝（10 /1000μs）: | 5A (8/20µs) |
| 電容@頻率: | 1.5pF @ 1MHz |
| 應用: | General Purpose |
| Email: | [email protected] |
