購買 DMT3009LDT-7與BYCHPS
購買即有保證

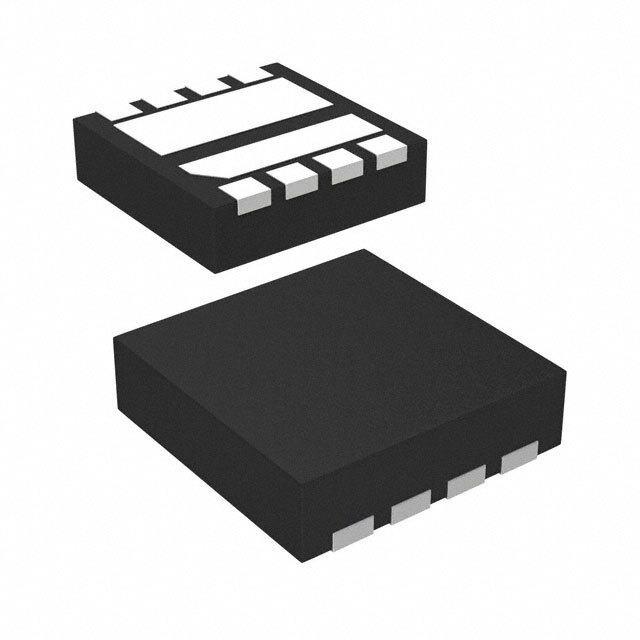

DMT3009LDT-7
- 型號:
- DMT3009LDT-7
- 描述:
- MOSFET 2N-CH 30V 30A V-DFN3030-8
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19658 Pieces
- 數據表:
- DMT3009LDT-7.pdf
簡單介紹
BYCHIPS是 DMT3009LDT-7的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DMT3009LDT-7購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 3V @ 250µA |
|---|---|
| 供應商設備封裝: | V-DFN3030-8 (Type K) |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 11.1 mOhm @ 14.4A, 10V |
| 功率 - 最大: | 1.2W |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 8-VDFN Exposed Pad |
| 其他名稱: | DMT3009LDT-7-ND DMT3009LDT-7DITR |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | DMT3009LDT-7 |
| 輸入電容（Ciss）（Max）@ Vds: | 1500pF @ 15V |
| 柵極電荷（Qg）（Max）@ Vgs: | 20nC @ 15V |
| FET型: | 2 N-Channel (Dual) Asymmetrical |
| FET特點: | Standard |
| 展開說明: | Mosfet Array 2 N-Channel (Dual) Asymmetrical 30V 30A 1.2W Surface Mount V-DFN3030-8 (Type K) |
| 漏極至源極電壓（Vdss）: | 30V |
| 描述: | MOSFET 2N-CH 30V 30A V-DFN3030-8 |
| 電流 - 25°C連續排水（Id）: | 30A |
| Email: | [email protected] |
