購買 DMN2011UFX-7與BYCHPS
購買即有保證

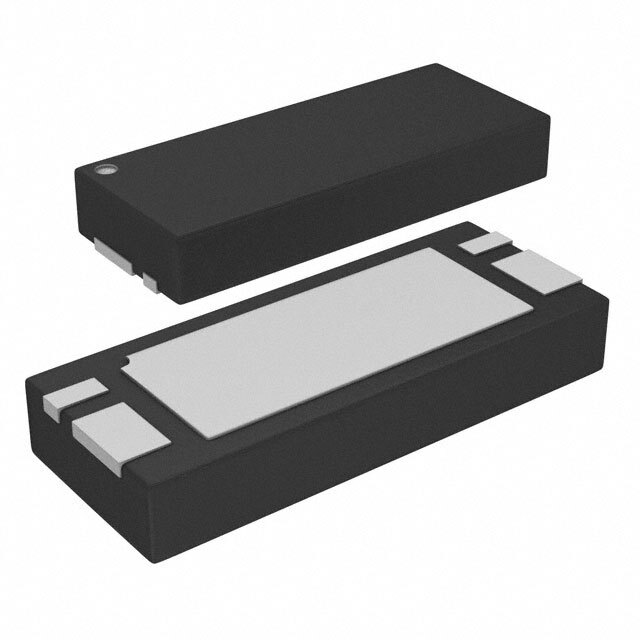

DMN2011UFX-7
- 型號:
- DMN2011UFX-7
- 描述:
- MOSFET 2N-CH 20V 12.2A DFN2050-4
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12805 Pieces
- 數據表:
- DMN2011UFX-7.pdf
簡單介紹
BYCHIPS是 DMN2011UFX-7的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DMN2011UFX-7購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1V @ 250µA |
|---|---|
| 供應商設備封裝: | V-DFN2050-4 |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 9.5 mOhm @ 10A, 4.5V |
| 功率 - 最大: | 2.1W |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 4-VFDFN Exposed Pad |
| 其他名稱: | DMN2011UFX-7DITR |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | DMN2011UFX-7 |
| 輸入電容（Ciss）（Max）@ Vds: | 2248pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | 56nC @ 10V |
| FET型: | 2 N-Channel (Dual) |
| FET特點: | Standard |
| 展開說明: | Mosfet Array 2 N-Channel (Dual) 20V 12.2A (Ta) 2.1W Surface Mount V-DFN2050-4 |
| 漏極至源極電壓（Vdss）: | 20V |
| 描述: | MOSFET 2N-CH 20V 12.2A DFN2050-4 |
| 電流 - 25°C連續排水（Id）: | 12.2A (Ta) |
| Email: | [email protected] |
