購買 DL5240B-TP與BYCHPS
購買即有保證

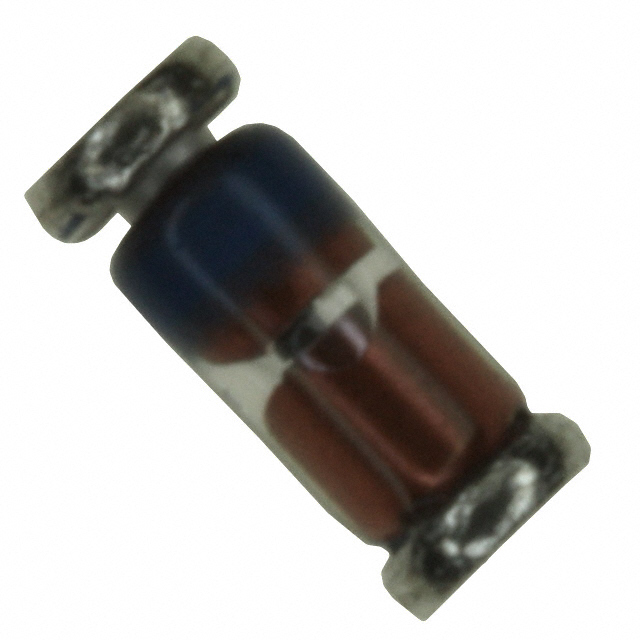

DL5240B-TP
- 型號:
- DL5240B-TP
- 描述:
- DIODE ZENER 10V 500MW MINIMELF
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16273 Pieces
- 數據表:
- DL5240B-TP.pdf
簡單介紹
BYCHIPS是 DL5240B-TP的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DL5240B-TP購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 齊納（標稱值）（VZ）: | 10V |
|---|---|
| 電壓 - 正向（Vf）（最大）: | 1.1V @ 200mA |
| 公差: | ±5% |
| 供應商設備封裝: | Mini MELF |
| 系列: | - |
| 功率 - 最大: | 500mW |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | DO-213AC, MINI-MELF, SOD-80 |
| 其他名稱: | DL5240B-TPMSTR DL5240BTP |
| 工作溫度: | -65°C ~ 175°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | DL5240B-TP |
| 阻抗（最大）（ZZT）: | 17 Ohm |
| 展開說明: | Zener Diode 500mW ±5% Surface Mount Mini MELF |
| 描述: | DIODE ZENER 10V 500MW MINIMELF |
| 電流 - Vr時反向漏電: | 3µA @ 8V |
| Email: | [email protected] |
