購買 DL4005-13與BYCHPS
購買即有保證

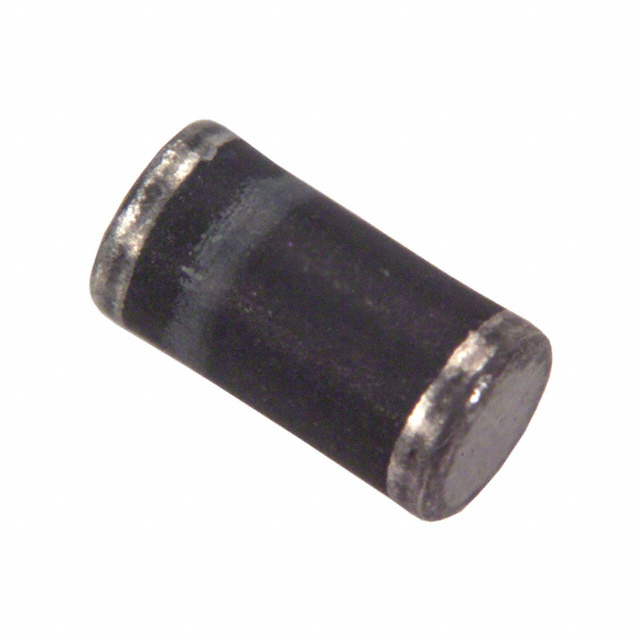

DL4005-13
- 型號:
- DL4005-13
- 描述:
- DIODE GEN PURP 600V 1A MELF
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 18329 Pieces
- 數據表:
- DL4005-13.pdf
簡單介紹
BYCHIPS是 DL4005-13的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DL4005-13購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 正向（Vf）（最大）: | 1.1V @ 1A |
|---|---|
| 電壓 - （Vr）（最大）: | 600V |
| 供應商設備封裝: | MELF |
| 速度: | Standard Recovery >500ns, > 200mA (Io) |
| 系列: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | DO-213AB, MELF |
| 其他名稱: | DL4005DITR DL4005TR DL4005TR-ND |
| 工作溫度 - 結: | -55°C ~ 150°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | DL4005-13 |
| 展開說明: | Diode Standard 600V 1A Surface Mount MELF |
| 二極管類型: | Standard |
| 描述: | DIODE GEN PURP 600V 1A MELF |
| 電流 - Vr時反向漏電: | 5µA @ 600V |
| 電流 - 平均整流（Io）: | 1A |
| 電容@ Vr，F時: | 15pF @ 4V, 1MHz |
| Email: | [email protected] |
