購買 DF10G7M1N,LF與BYCHPS
購買即有保證

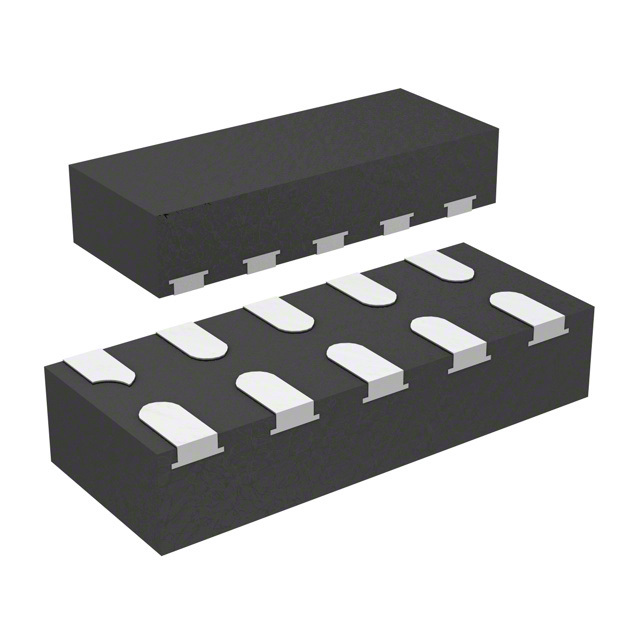

DF10G7M1N,LF
- 型號:
- DF10G7M1N,LF
- 描述:
- TVS DIODE 5VWM 12VC 10DFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12336 Pieces
- 數據表:
- DF10G7M1N,LF.pdf
簡單介紹
BYCHIPS是 DF10G7M1N,LF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DF10G7M1N,LF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 反向隔離（標準值）: | 5V (Max) |
|---|---|
| 電壓 - 箝位（最大）@ Ipp: | 12V (Typ) |
| 電壓 - 擊穿（最小值）: | 6V |
| 單向通道: | 4 |
| 類型: | Steering (Rail to Rail) |
| 供應商設備封裝: | 10-DFN (2.5x1) |
| 系列: | - |
| 電源線保護: | Yes |
| 功率峰值脈衝: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 10-UFDFN |
| 其他名稱: | DF10G7M1N,LF(D DF10G7M1NLFTR |
| 工作溫度: | - |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | DF10G7M1N,LF |
| 描述: | TVS DIODE 5VWM 12VC 10DFN |
| 電流 - 峰值脈衝（10 /1000μs）: | 1A (8/20µs) |
| 電容@頻率: | 0.3pF @ 1MHz |
| 應用: | HDMI |
| Email: | [email protected] |
