購買 DECASMDC050F/60-2與BYCHPS
購買即有保證

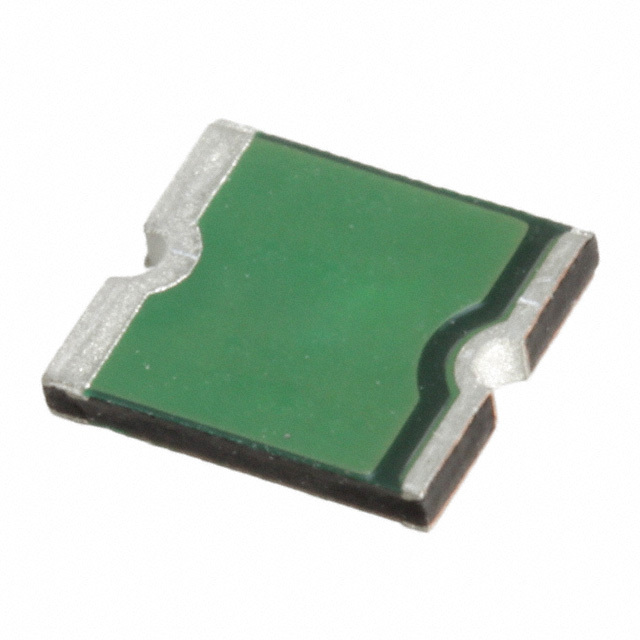

DECASMDC050F/60-2
- 型號:
- DECASMDC050F/60-2
- 製造商:
- Littelfuse
- 描述:
- POLYSWITCH PTC OVP 0.55A HLD 60V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18101 Pieces
簡單介紹
BYCHIPS是 DECASMDC050F/60-2的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的DECASMDC050F/60-2購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 60V |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 100ms |
| 厚度（最大）: | 0.035" (0.89mm) |
| 尺寸/尺寸: | 0.197" L x 0.177" W (5.01mm x 4.50mm) |
| 系列: | PolySwitch®, decaSMD |
| 電阻 - 跳閘（R1）（最大）: | 1.1 Ohm |
| 電阻 - 初始（Ri）（最小值）: | 200 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 2018 (5045 Metric), Concave |
| 其他名稱: | D61614-000 DECASMDC050F/60-2-ND DECASMDC050F/602 DECASMDC050F/60TR DECASMDC050F/60TR-ND DECASMDC050F602 RF1342-000 |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 2A (4 Weeks) |
| 製造商標準交貨期: | 17 Weeks |
| 製造商零件編號: | DECASMDC050F/60-2 |
| 引線間距: | - |
| 高度 - 座高（最大）: | - |
| 展開說明: | PTC Resettable Fuse 60V Ih Surface Mount 2018 (5045 Metric), Concave |
| 描述: | POLYSWITCH PTC OVP 0.55A HLD 60V |
| 電流 - 跳閘（It）: | 1.1A |
| 電流 - 最大: | 10A |
| 電流 - 維持（Ih）（最大值）: | 550mA |
| 認證: | CSA, TUV, UL |
| Email: | [email protected] |
