購買 CP1SA-12V-Z與BYCHPS
購買即有保證

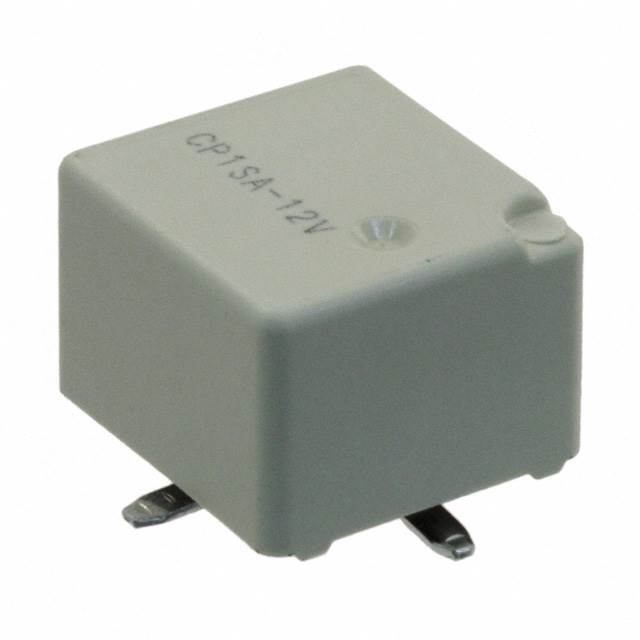

CP1SA-12V-Z
- 型號:
- CP1SA-12V-Z
- 製造商:
- Panasonic
- 描述:
- RELAY AUTOMOTIVE SPDT 20A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18690 Pieces
- 數據表:
- CP1SA-12V-Z.pdf
簡單介紹
BYCHIPS是 CP1SA-12V-Z的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的CP1SA-12V-Z購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 7.2 VDC |
|---|---|
| 關閉電壓（最小）: | 1 VDC |
| 端接類型: | SMD (SMT) Tab |
| 切換電壓: | 14VDC - Nom |
| 系列: | CP |
| 發布時間: | 10ms |
| 繼電器類型: | Automotive |
| 封装: | Tape & Reel (TR) |
| 其他名稱: | 255-3417-2 CP1SA-12V-Z-ND CP1SA12VZ |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 10ms |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 4 (72 Hours) |
| 製造商標準交貨期: | 17 Weeks |
| 製造商零件編號: | CP1SA-12V-Z |
| 特徵: | Sealed - Fully |
| 展開說明: | Automotive Relay SPDT (1 Form C) 12VDC Coil Surface Mount |
| 描述: | RELAY AUTOMOTIVE SPDT 20A 12V |
| 觸點額定值（電流）: | 20A |
| 觸點材料: | Silver Alloy, Cadmium Free |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 225 Ohms |
| 線圈功率: | 640 mW |
| 線圈電流: | 53.3mA |
| Email: | [email protected] |
