購買 CDSC706-0504C與BYCHPS
購買即有保證

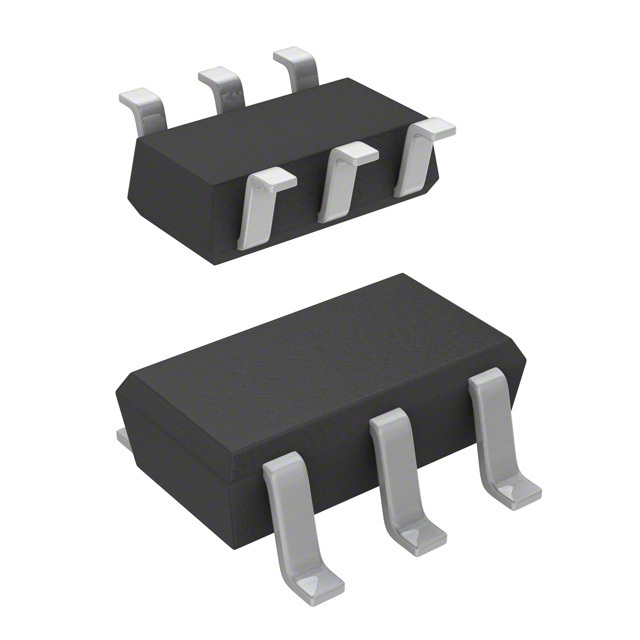

CDSC706-0504C
- 型號:
- CDSC706-0504C
- 製造商:
- Bourns, Inc.
- 描述:
- TVS DIODE 5VWM 9VC SC70-6
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12478 Pieces
簡單介紹
BYCHIPS是 CDSC706-0504C的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的CDSC706-0504C購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 反向隔離（標準值）: | 5V |
|---|---|
| 電壓 - 箝位（最大）@ Ipp: | 9V |
| 電壓 - 擊穿（最小值）: | 6V |
| 單向通道: | 4 |
| 類型: | Steering (Rail to Rail) |
| 供應商設備封裝: | SC-70-6 |
| 系列: | - |
| 電源線保護: | Yes |
| 功率峰值脈衝: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 6-TSSOP, SC-88, SOT-363 |
| 其他名稱: | CDSC706-0504C-ND CDSC706-0504CTR CDSC7060504C |
| 工作溫度: | -55°C ~ 85°C (TA) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | CDSC706-0504C |
| 描述: | TVS DIODE 5VWM 9VC SC70-6 |
| 電流 - 峰值脈衝（10 /1000μs）: | 6.5A (8/20µs) |
| 電容@頻率: | - |
| 應用: | General Purpose |
| Email: | [email protected] |
