購買 CAP120ASANG與BYCHPS
購買即有保證

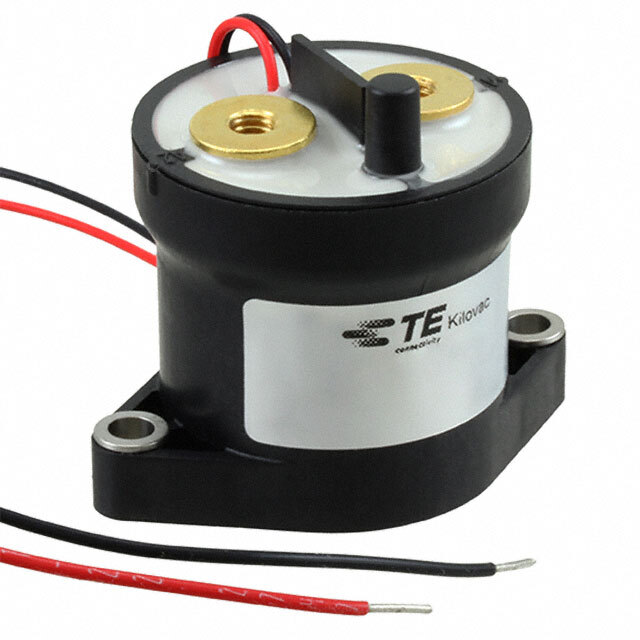

CAP120ASANG
- 型號:
- CAP120ASANG
- 描述:
- RELAY CONTACTOR SPST 150A 28V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14175 Pieces
- 數據表:
- CAP120ASANG.pdf
簡單介紹
BYCHIPS是 CAP120ASANG的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的CAP120ASANG購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 16 VDC |
|---|---|
| 關閉電壓（最小）: | 6 VDC |
| 端接類型: | Stud, Wire Leads |
| 切換電壓: | 600VDC - Max |
| 系列: | CAP120, KILOVAC |
| 發布時間: | 5ms |
| 繼電器類型: | Contactor |
| 封装: | Bulk |
| 其他名稱: | 2-1618403-6 A124433 CAP120ASANG-ND |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 8ms |
| 安裝類型: | Chassis Mount |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | CAP120ASANG |
| 特徵: | Sealed - Hermetically |
| 展開說明: | Contactor Relay SPST-NO (1 Form X) 28VDC Coil Chassis Mount |
| 描述: | RELAY CONTACTOR SPST 150A 28V |
| 觸點額定值（電流）: | 150A |
| 觸點材料: | - |
| 聯繫表: | SPST-NO (1 Form X) |
| 線圈電壓: | 28VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 200 Ohms |
| 線圈功率: | 3.9 W |
| 線圈電流: | 140mA |
| Email: | [email protected] |
