購買 CA1B-DC12V-N與BYCHPS
購買即有保證

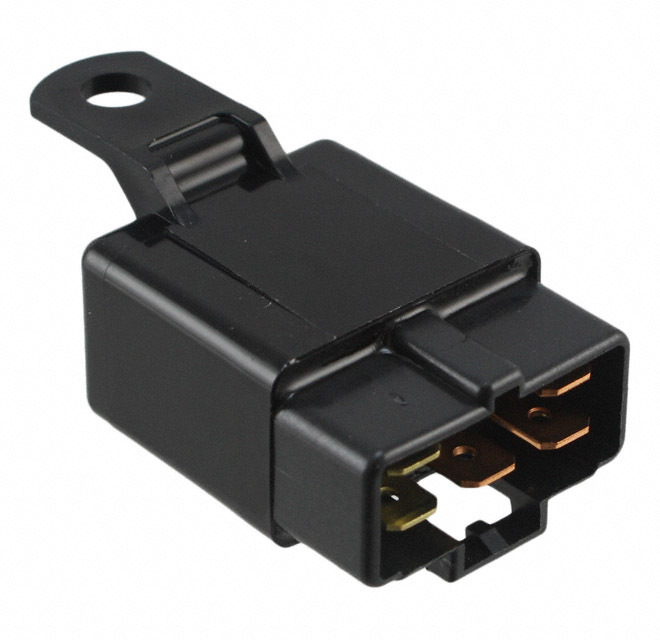

CA1B-DC12V-N
- 型號:
- CA1B-DC12V-N
- 製造商:
- Panasonic
- 描述:
- RELAY AUTOMOTIVE SPST 20A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17270 Pieces
- 數據表:
- CA1B-DC12V-N.pdf
簡單介紹
BYCHIPS是 CA1B-DC12V-N的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的CA1B-DC12V-N購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 8 VDC |
|---|---|
| 關閉電壓（最小）: | 0.6 VDC |
| 端接類型: | Plug In |
| 切換電壓: | 16VDC - Max |
| 系列: | CA |
| 發布時間: | 10ms |
| 繼電器類型: | Automotive |
| 封装: | Tray |
| 其他名稱: | 255-3940 CA1B-DC12V-N-ND CA1BDC12VN |
| 工作溫度: | -30°C ~ 80°C |
| 操作時間: | 10ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | CA1B-DC12V-N |
| 特徵: | - |
| 展開說明: | Automotive Relay SPST-NC (1 Form B) 12VDC Coil Chassis Mount |
| 描述: | RELAY AUTOMOTIVE SPST 20A 12V |
| 觸點額定值（電流）: | 20A |
| 觸點材料: | Silver Alloy, Cadmium Free |
| 聯繫表: | SPST-NC (1 Form B) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 80 Ohms |
| 線圈功率: | 1.8 W |
| 線圈電流: | 150mA |
| Email: | [email protected] |
