購買 C93432與BYCHPS
購買即有保證

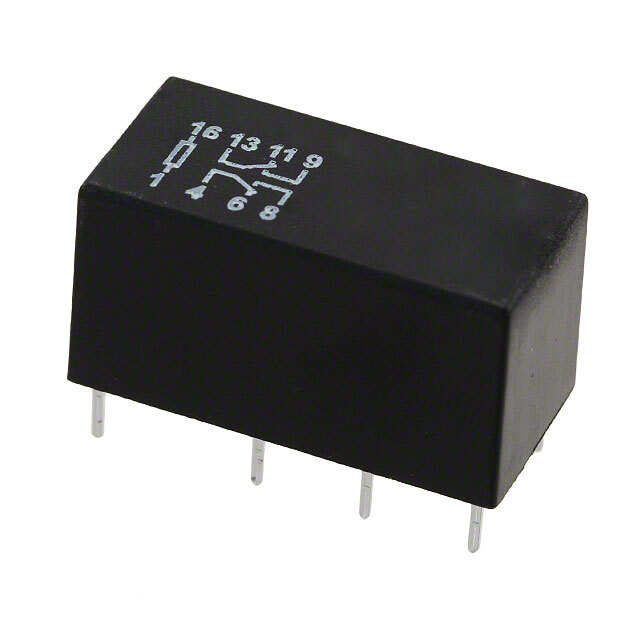

C93432
- 型號:
- C93432
- 描述:
- RELAY TELECOM DPDT 2A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15761 Pieces
簡單介紹
BYCHIPS是 C93432的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的C93432購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 7.8 VDC |
|---|---|
| 關閉電壓（最小）: | 1.2 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 250VAC, 220VDC - Max |
| 系列: | MT2, AXICOM |
| 發布時間: | 3ms |
| 繼電器類型: | Telecom |
| 封装: | Tube |
| 其他名稱: | 6-1462000-2 6-1462000-2-ND 614620002 C93432-ND PB1642 |
| 工作溫度: | -55°C ~ 85°C |
| 操作時間: | 5ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | C93432 |
| 特徵: | - |
| 展開說明: | Telecom Relay DPDT (2 Form C) Through Hole |
| 描述: | RELAY TELECOM DPDT 2A 12V |
| 觸點額定值（電流）: | 2A |
| 觸點材料: | Silver Nickel (AgNi), Gold (Au) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 280 Ohms |
| 線圈功率: | 550 mW |
| 線圈電流: | 45.8mA |
| Email: | [email protected] |
