購買 BTW69-800RG與BYCHPS
購買即有保證

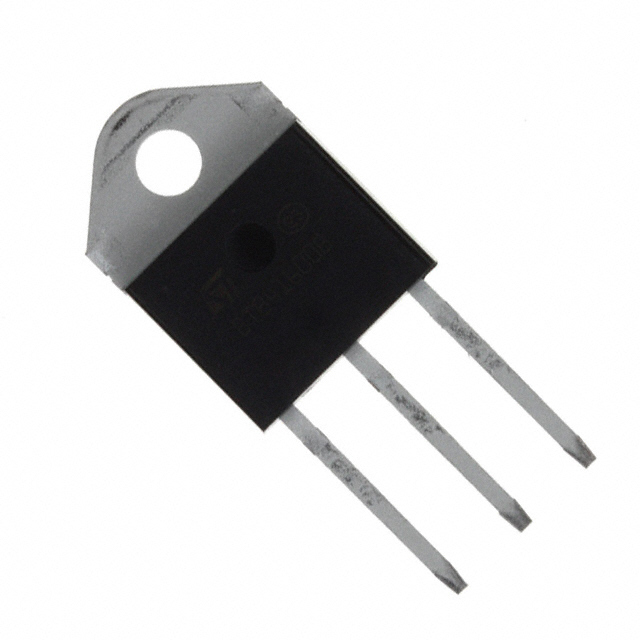

BTW69-800RG
- 型號:
- BTW69-800RG
- 製造商:
- ST
- 描述:
- IC SCR 50A 800V INSUL TOP-3
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18495 Pieces
- 數據表:
- BTW69-800RG.pdf
簡單介紹
BYCHIPS是 BTW69-800RG的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的BTW69-800RG購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 導通狀態（VTM）（最大）: | 1.9V |
|---|---|
| 電壓 - 斷路: | 800V |
| 電壓 - 柵極觸發（VGT）（最大值）: | 1.3V |
| 供應商設備封裝: | TOP3 |
| 系列: | - |
| SCR類型: | Standard Recovery |
| 封装: | Tube |
| 封裝/箱體: | TOP-3 |
| 其他名稱: | 497-7194-5 BTW69-800RG-ND BTW69800RG |
| 工作溫度: | -40°C ~ 125°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 7 Weeks |
| 製造商零件編號: | BTW69-800RG |
| 展開說明: | SCR 800V 50A Standard Recovery Through Hole TOP3 |
| 描述: | IC SCR 50A 800V INSUL TOP-3 |
| 電流 - 導通狀態（IT（RMS））（最大）: | 50A |
| 電流 - 導通狀態（IT（AV））（最大值）: | 32A |
| 電流 - 關閉狀態（最大值）: | 10µA |
| 電流 - 非眾議員浪湧50，60赫茲（ITSM）: | 580A, 610A |
| 電流 - 維持（Ih）（最大值）: | 150mA |
| 電流 - 柵極觸發（IGT）（最大值）: | 80mA |
| Email: | [email protected] |
