購買 BR246D-320B3-28V-026M與BYCHPS
購買即有保證

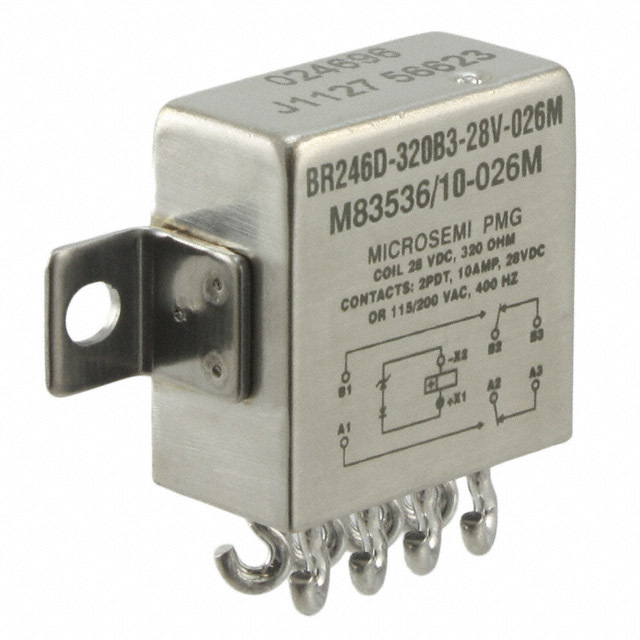

BR246D-320B3-28V-026M
- 型號:
- BR246D-320B3-28V-026M
- 製造商:
- Microsemi
- 描述:
- RELAY GEN PURPOSE DPDT 10A 28V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18798 Pieces
簡單介紹
BYCHIPS是 BR246D-320B3-28V-026M的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的BR246D-320B3-28V-026M購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VDC |
|---|---|
| 關閉電壓（最小）: | 5.1 VDC |
| 端接類型: | Solder Hook |
| 切換電壓: | 208VAC, 28VDC - Max |
| 系列: | BR246D |
| 發布時間: | 15ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | BR246D320B328V026M |
| 工作溫度: | -70°C ~ 125°C |
| 操作時間: | 15ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 20 Weeks |
| 製造商零件編號: | BR246D-320B3-28V-026M |
| 特徵: | - |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 28VDC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE DPDT 10A 28V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | - |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 28VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 320 Ohms |
| 線圈功率: | 500 mW |
| 線圈電流: | 87.5mA |
| Email: | [email protected] |
