購買 B59975C120A70與BYCHPS
購買即有保證

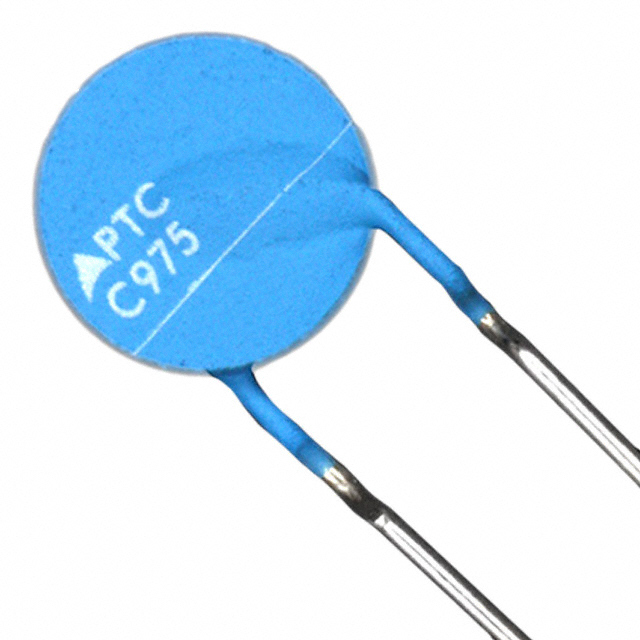

B59975C120A70
- 型號:
- B59975C120A70
- 製造商:
- EPCOS
- 描述:
- PTC RESETTABLE 450MA 24V RAD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14008 Pieces
簡單介紹
BYCHIPS是 B59975C120A70的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的B59975C120A70購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 30V |
|---|---|
| 類型: | Ceramic |
| 跳閘時間: | - |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.354" Dia x 0.138" W (9.00mm x 3.50mm) |
| 系列: | - |
| 電阻 - 跳閘（R1）（最大）: | - |
| 電阻 - 初始（Ri）（最小值）: | - |
| 電阻 - 25°C（典型值）: | 1.8 Ohm |
| 評級: | AEC-Q200 |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | 495-3901 B59975C 120A 70 B59975C0120A070 B59975C0120A070-ND B59975C120A70-ND |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | B59975C120A70 |
| 引線間距: | 0.197" (5.00mm) |
| 高度 - 座高（最大）: | 0.492" (12.50mm) |
| 展開說明: | PTC Resettable Fuse 30V Ih Through Hole Radial, Disc |
| 描述: | PTC RESETTABLE 450MA 24V RAD |
| 電流 - 跳閘（It）: | 900mA |
| 電流 - 最大: | 3A |
| 電流 - 維持（Ih）（最大值）: | 450mA |
| 認證: | UR |
| Email: | [email protected] |
