購買 B07D992BE2-0132與BYCHPS
購買即有保證

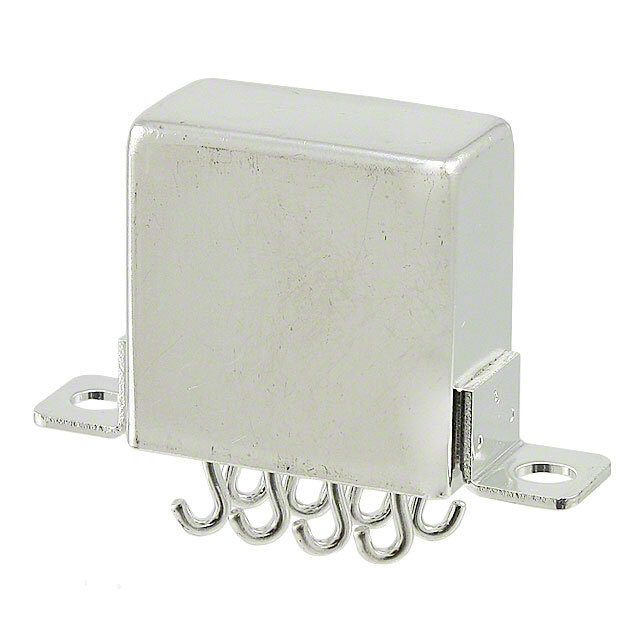

B07D992BE2-0132
- 型號:
- B07D992BE2-0132
- 描述:
- RELAY GEN PURPOSE DPDT 10A 120V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 17733 Pieces
簡單介紹
BYCHIPS是 B07D992BE2-0132的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的B07D992BE2-0132購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 65 VDC |
|---|---|
| 關閉電壓（最小）: | 7.7 VDC |
| 端接類型: | Solder Hook |
| 切換電壓: | 115VAC, 28VDC - Max |
| 系列: | Military, MIL-R-5757/23, 07, CII |
| 發布時間: | 15ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1122-1018 1122-1018-MIL 1617005-6 A101569 A101569-ND B07D992BE20132 M5757/23-027 |
| 工作溫度: | -65°C ~ 125°C |
| 操作時間: | 15ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 27 Weeks |
| 製造商零件編號: | B07D992BE2-0132 |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 120VDC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE DPDT 10A 120V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 120VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 7.6 kOhms |
| 線圈功率: | 1.9 W |
| 線圈電流: | 15.8mA |
| Email: | [email protected] |
