購買 B07D034BC2-0053與BYCHPS
購買即有保證

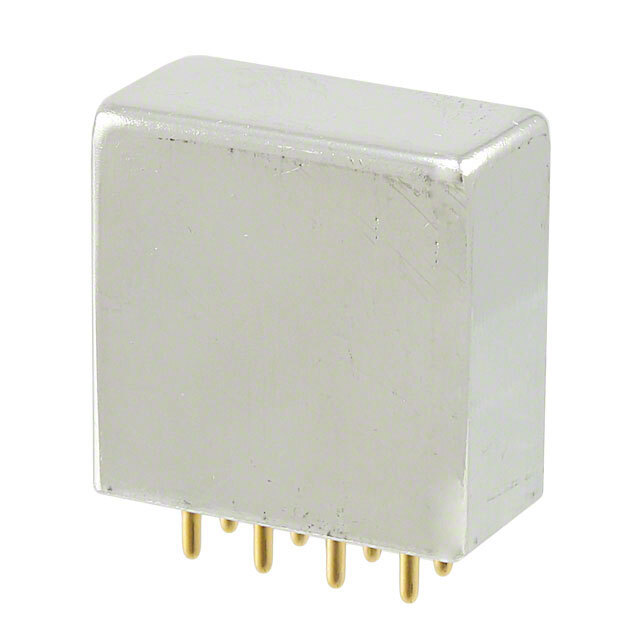

B07D034BC2-0053
- 型號:
- B07D034BC2-0053
- 描述:
- RELAY GEN PURPOSE DPDT 10A 26.5V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 15347 Pieces
簡單介紹
BYCHIPS是 B07D034BC2-0053的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的B07D034BC2-0053購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 13 VDC |
|---|---|
| 關閉電壓（最小）: | 2.3 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 115VAC, 28VDC - Max |
| 系列: | Military, MIL-R-5757/23, 07, CII |
| 發布時間: | 15ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1-1617004-0 1122-1011 1122-1011-MIL A101561 A101561-ND B07D034BC20053 M5757/23-005 |
| 工作溫度: | -65°C ~ 125°C |
| 操作時間: | 15ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 25 Weeks |
| 製造商零件編號: | B07D034BC2-0053 |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 26.5VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE DPDT 10A 26.5V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 26.5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 300 Ohms |
| 線圈功率: | 2.34 W |
| 線圈電流: | 88.3mA |
| Email: | [email protected] |
