購買 AX1005-102K與BYCHPS
購買即有保證

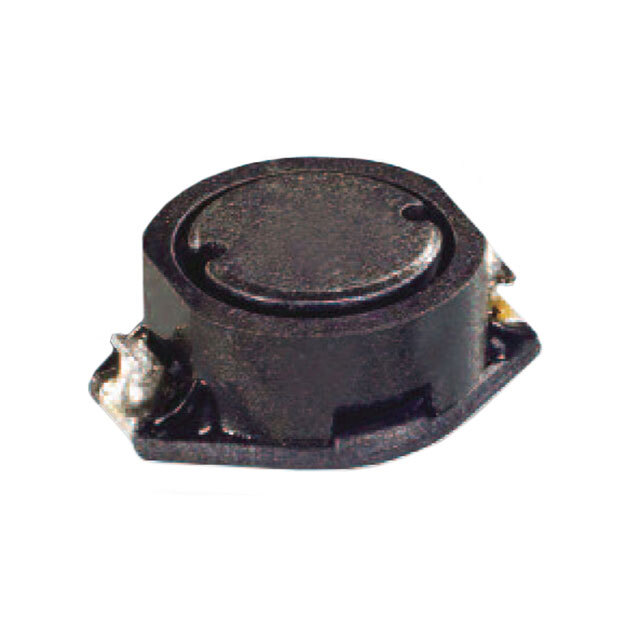

AX1005-102K
- 型號:
- AX1005-102K
- 製造商:
- Triad Magnetics
- 描述:
- FIXED IND 1MH 220MA 3.2 OHM SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13704 Pieces
- 數據表:
- AX1005-102K.pdf
簡單介紹
BYCHIPS是 AX1005-102K的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AX1005-102K購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±10% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.500" L x 0.394" W (12.70mm x 10.00mm) |
| 屏蔽: | Shielded |
| 系列: | AX1005 |
| 評級: | - |
| Q因子@頻率: | 70 @ 100kHz |
| 封装: | Bulk |
| 封裝/箱體: | Nonstandard |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Surface Mount |
| 材料 - 核: | Ferrite |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | AX1005-102K |
| 電感: | 1mH |
| 高度 - 座高（最大）: | 0.193" (4.90mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | 2MHz |
| 展開說明: | 1mH Shielded Wirewound Inductor 220mA 3.2 Ohm Max Nonstandard |
| 描述: | FIXED IND 1MH 220MA 3.2 OHM SMD |
| 直流電阻（DCR）: | 3.2 Ohm Max |
| 目前評級: | 220mA |
| 電流 - 飽和: | - |
| Email: | [email protected] |
