購買 AT-42070與BYCHPS
購買即有保證

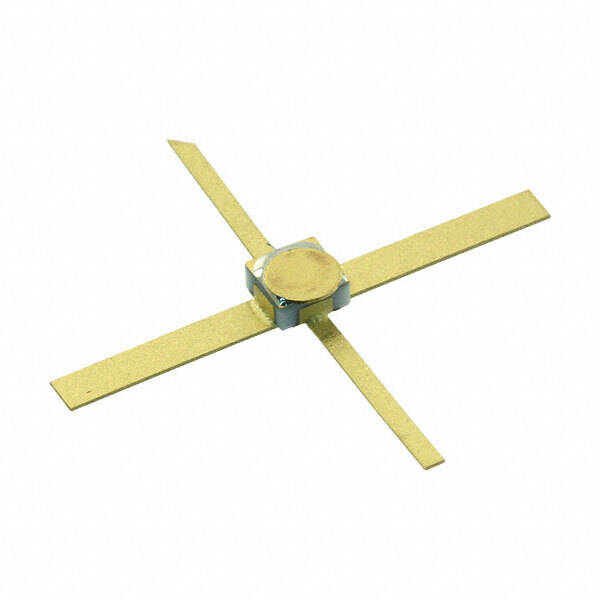

AT-42070
- 型號:
- AT-42070
- 描述:
- TRANS NPN BIPO 12V 80MA 70-SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13103 Pieces
- 數據表:
- AT-42070.pdf
簡單介紹
BYCHIPS是 AT-42070的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的AT-42070購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 12V |
|---|---|
| 晶體管類型: | NPN |
| 供應商設備封裝: | 70 mil Package |
| 系列: | - |
| 功率 - 最大: | 600mW |
| 封装: | Bulk |
| 封裝/箱體: | 4-SMD (70 mil) |
| 其他名稱: | 516-2369 AT-42070-ND |
| 工作溫度: | 200°C (TJ) |
| 噪聲係數（dB典型值@頻率）: | 1.9dB ~ 3dB @ 2GHz ~ 4GHz |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | AT-42070 |
| 獲得: | 10.5dB ~ 14dB |
| 頻率 - 轉換: | 8GHz |
| 展開說明: | RF Transistor NPN 12V 80mA 8GHz 600mW Surface Mount 70 mil Package |
| 描述: | TRANS NPN BIPO 12V 80MA 70-SMD |
| 直流電流增益（HFE）（最小值）@ IC，的Vce: | 30 @ 35mA, 8V |
| 電流 - 集電極（Ic）（最大）: | 80mA |
| Email: | [email protected] |
